Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Installing the Dual microSD 64GB Enterprise
Slot 1
PWD CLR
RCVR
1 2
external connectors
LAN 1
LAN 1
Management
LAN
Shared LAN 2
DIMM 2B
DIMM 1B
Micro
SD
FAN1
FAN2
Battery
iRMC
S5
ROC
PWR4
INDICATE
CSS
SATA
ODD
Front VGA
OOB
Intel
i210
Service
LAN
USB 1
SATA
0-3
Intel
i210

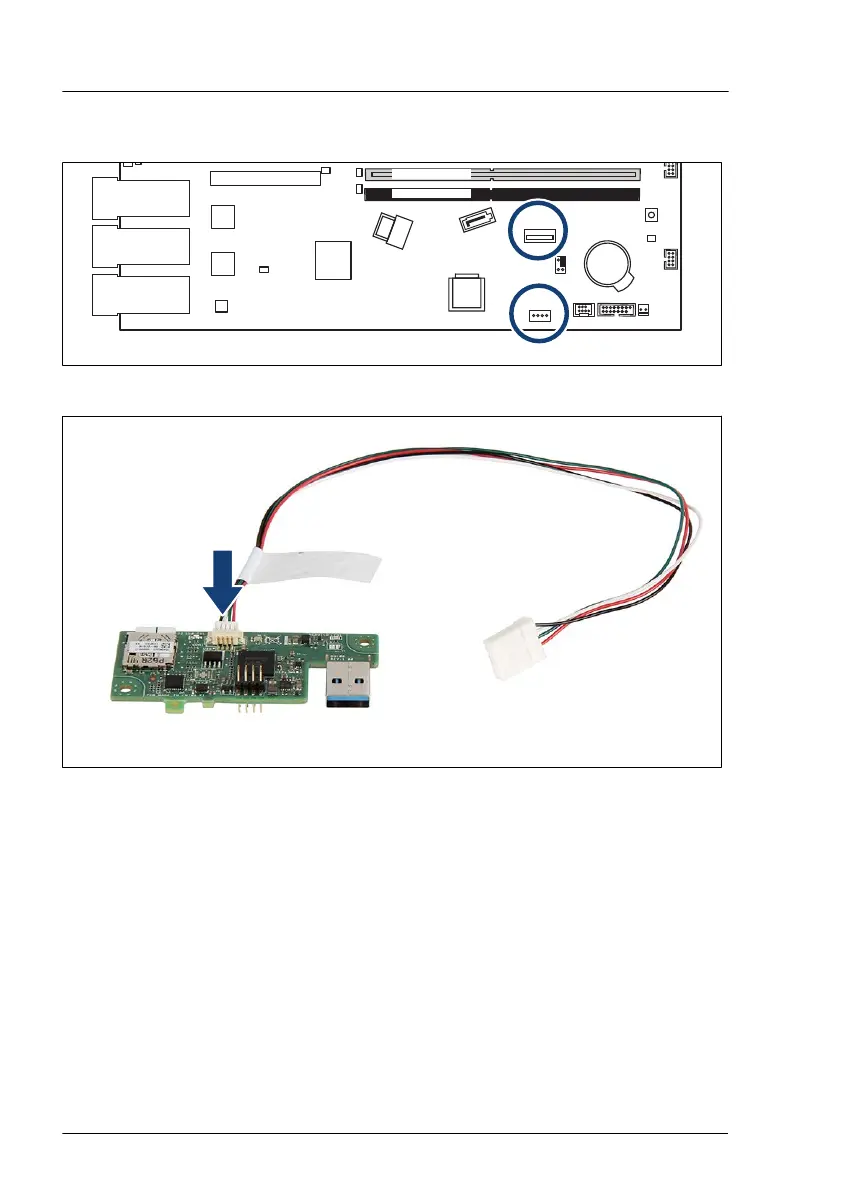

Figure 220: Position on the system board
Figure 221: Connecting the cable to the Dual microSD 64GB Enterprise
▶
Connect the cable to the Dual microSD 64GB Enterprise.
System board and components
318 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
