Fujitsu PRIMERGY RX1330 M4

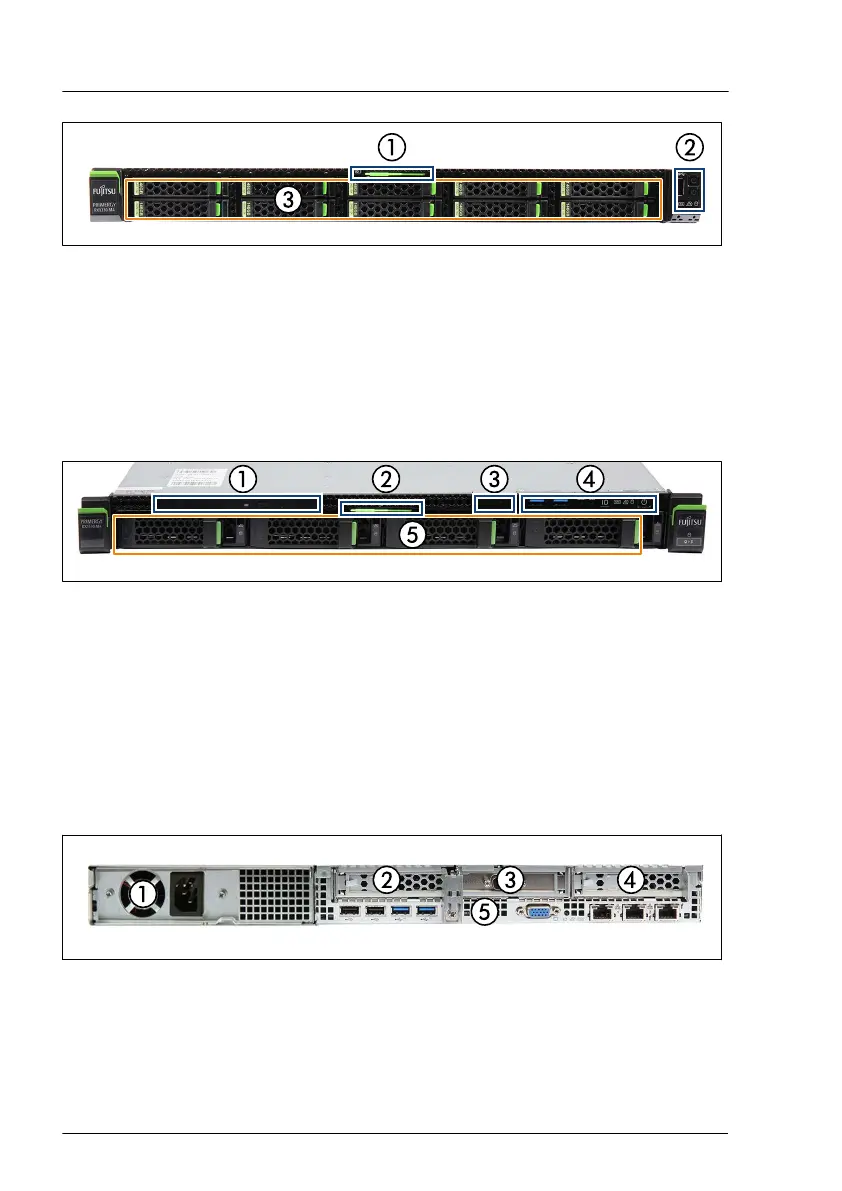

Figure 230: Server front with up to 10x 2.5-inch HDDs/SSDs
1 ID card
2
Front panel on QRL
3
Up to 10x 2.5-inch HDDs/SSDs
16.1.1.2 3.5-inch HDD configuration
The PRIMERGY RX1330 M4 server is available as a rack model.
Figure 231: Server front with up to 4x 3.5-inch HDDs
1 ODD (option) / dummy cover
2 ID card
3
Front VGA (option) / dummy cover
4 Front panel module
5 Up to 4x 3.5-inch HDDs
16.1.2 Server rear
16.1.2.1 Server rear with standard PSU
Figure 232: Server rear with standard PSU
1 Standard PSU
2 PCI slot 3 / riser module 3
3
PCI slot 2 / riser module 2
4 PCI slot 1 / riser module 1
5 I/O panel
Appendix A
336 Upgrade and Maintenance Manual RX1330 M4
