16.1.2.2 Server rear with hot-plug PSUs

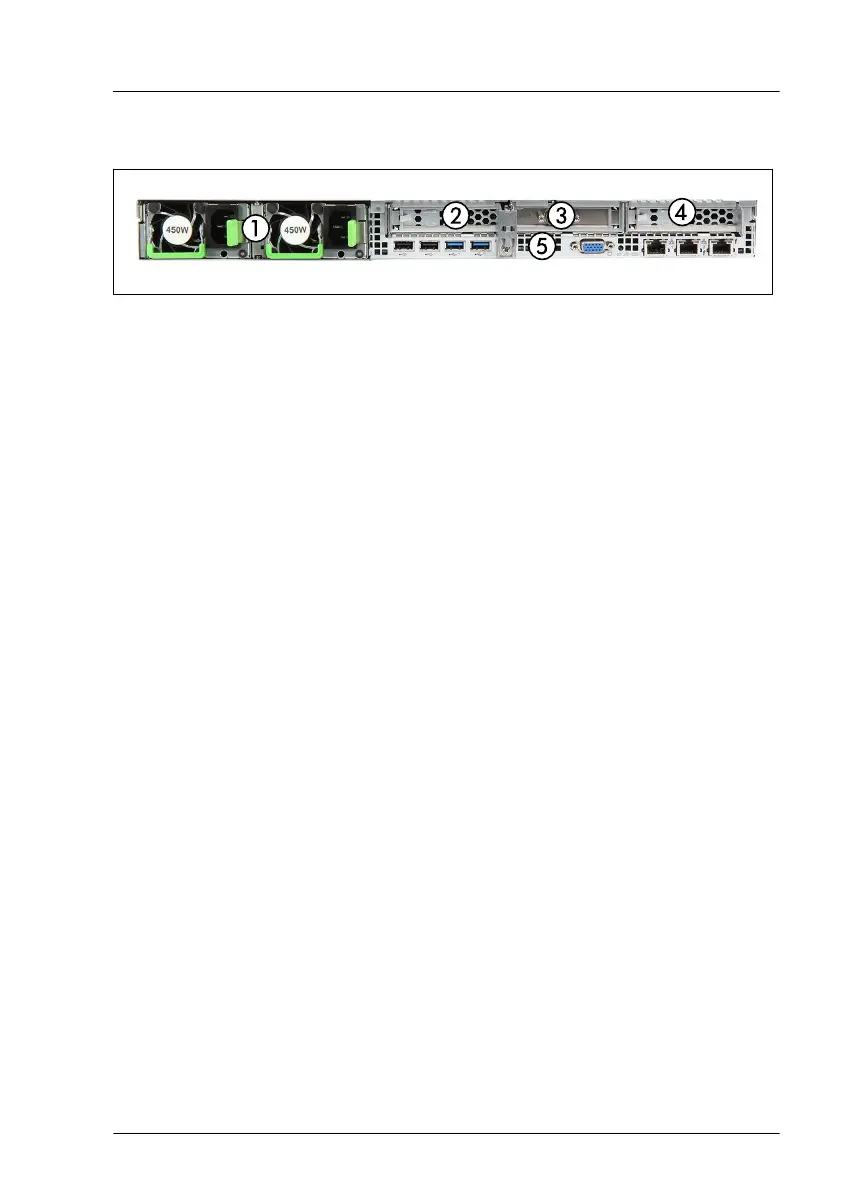

Figure 233: Server rear with hot-plug PSUs

1 Up to 2 hot-plug PSUs

2 PCI slot 3 / riser module 3

PCI slot 2 / riser module 2

4 PCI slot 1 / riser module 1

5 I/O panel

Appendix A

RX1330 M4 Upgrade and Maintenance Manual 337
