16.2.2.3 Indicators on the hot-plug HDD/SSD module

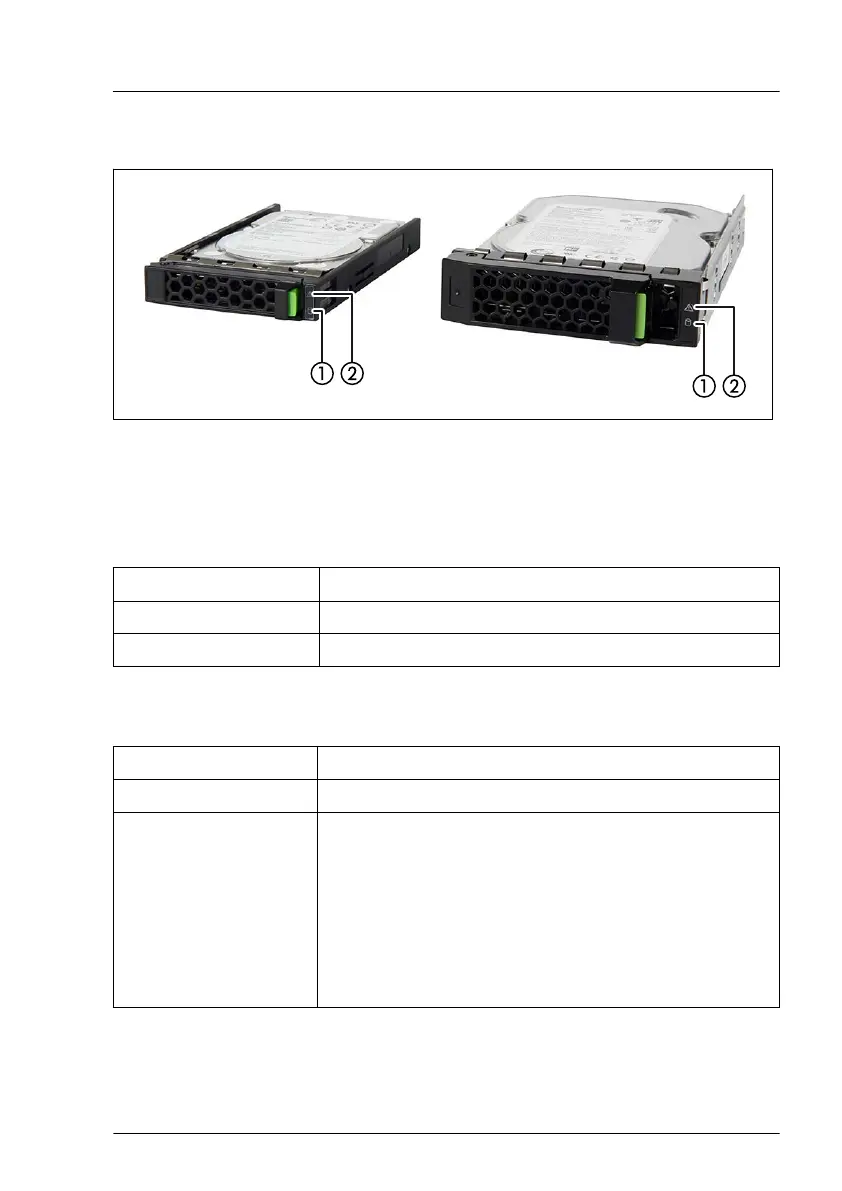

Figure 243: Indicators on the hot-plug HDD/SSD module
1 Access indicator 2 Error indicator
Access Indicator (1)
Status Description
off The HDD/SSD is inactive.
green on The HDD/SSD being accessed.
Error indicator (2)
Status Description
off No HDD/SSD error detected.
orange on An HDD/SSD error has been detected.
Possible causes:
– The drive is defective and needs replacing.
–
A RAID rebuild process has failed.
– The HDD/SSD module has not been inserted
correctly.
Appendix A
RX1330 M4 Upgrade and Maintenance Manual 351
