Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Status Description
flashing orange slowly HDD/SSD RAID rebuild is in progress. Data is being
restored after replacing a drive that has been
combined into a RAID array.
16.2.3 Server rear
16.2.3.1 Connectors on the server rear

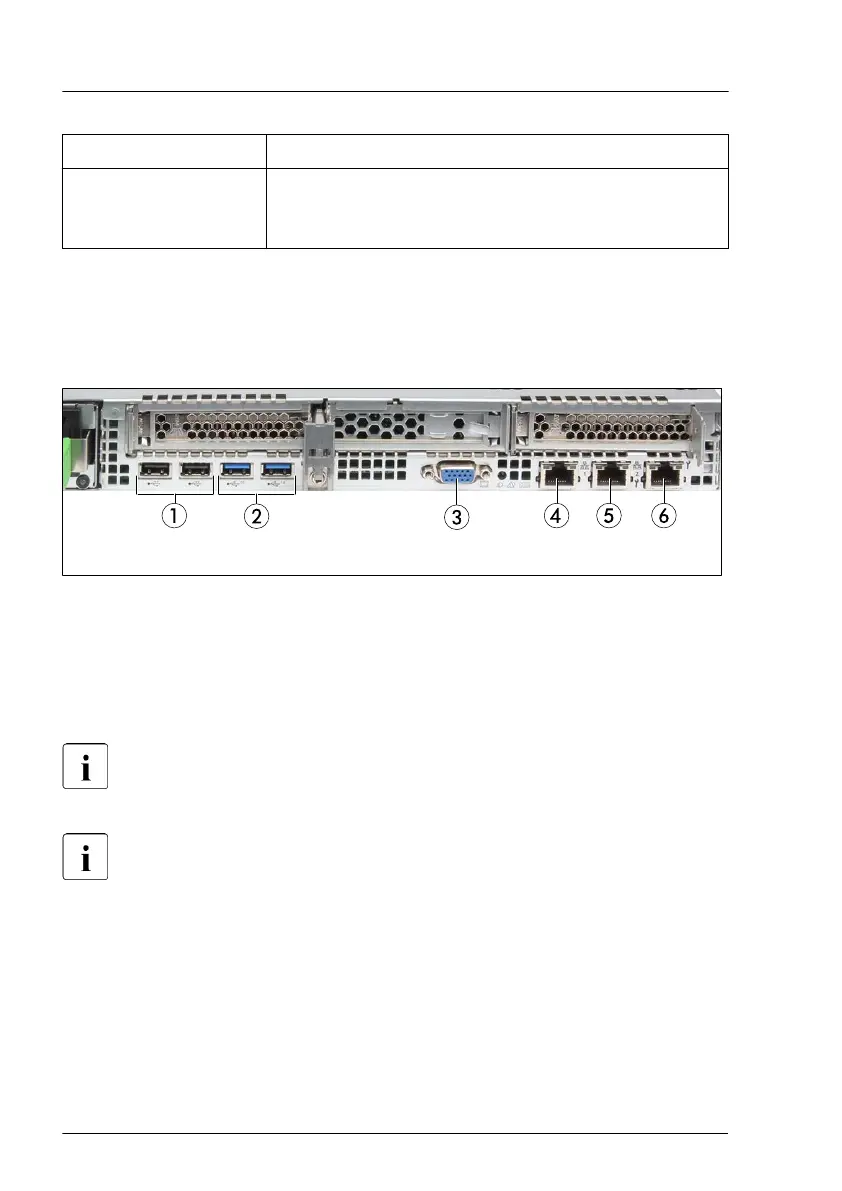

Figure 244: Connectors on the server rear
1 USB 3.0 connectors (2x)
2 USB 3.1 Gen 2 connectors (2x)
3
Video connector (VGA)
4 Standard LAN connector (LAN1)
5 Shared LAN connector (LAN2)
6 Management LAN connector (for iRMC
server management function)
Depending on the BIOS settings, the shared LAN connector may also
be used as a management LAN connector. For more information, see
the corresponding BIOS Setup Utility reference manual.
Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
Appendix A
352 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
