Fujitsu PRIMERGY RX2540 M6

The ODD (2) and the front VGA (1) are options in some configurations.
3.1.1.2
2.5-inch HDD/SSD configuration

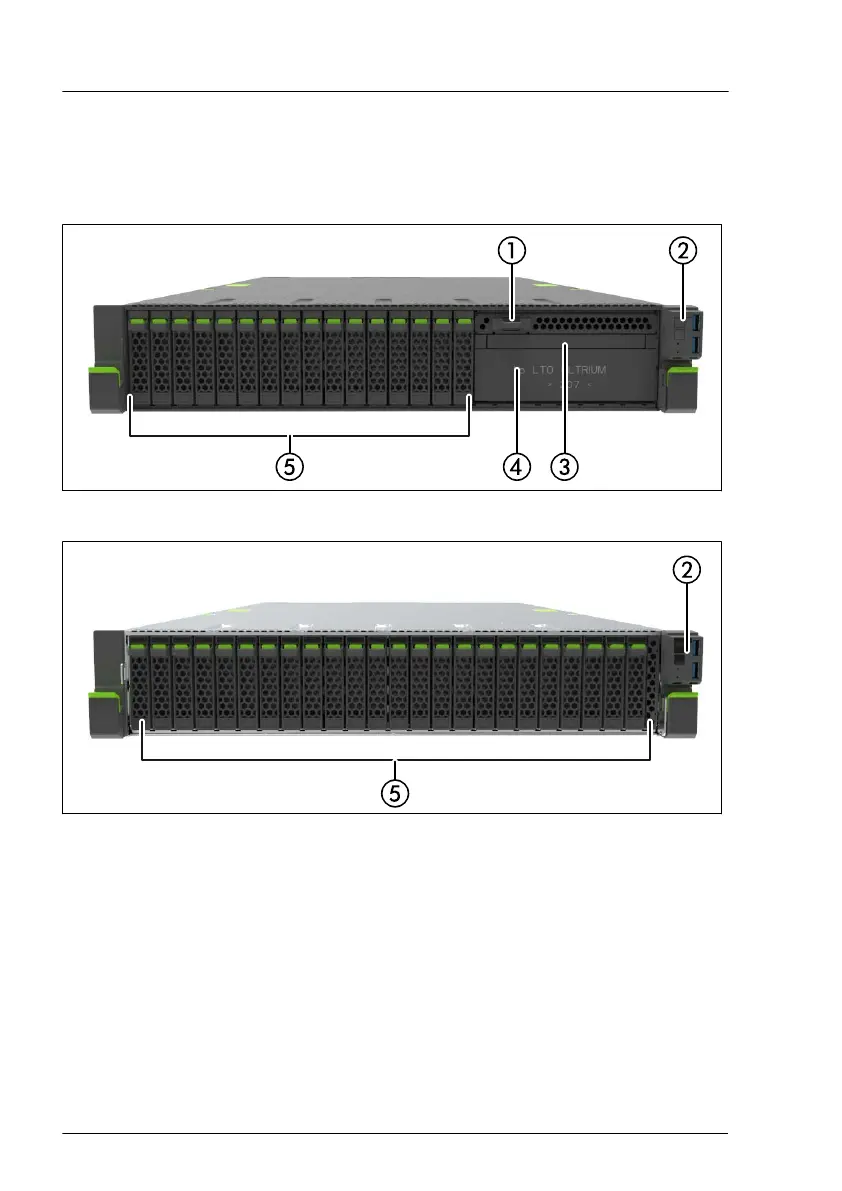

Figure 3: Front side 16x 2.5-inch HDDs / SSDs / PCIe SSDs
Figure 4: Front side 24x 2.5-inch HDDs / SSDs / PCIe SSDs
1 Front VGA
2
Common Operation Panel
3 ODD / dummy cover
4 LTO drive / RDX drive / dummy cover
5 HDDs / SSDs / PCIe SSDs / dummy
modules
The ODD (3), the LTO drive or RDX drive (4) and the front VGA (1) are options
in some configurations.
Product description
20 Operating Manual RX2540 M6
