6.4 Installing HDD/SSD modules
6.4.1
Installing 3.5-inch HDD modules
Removing a 3.5-inch HDD dummy module

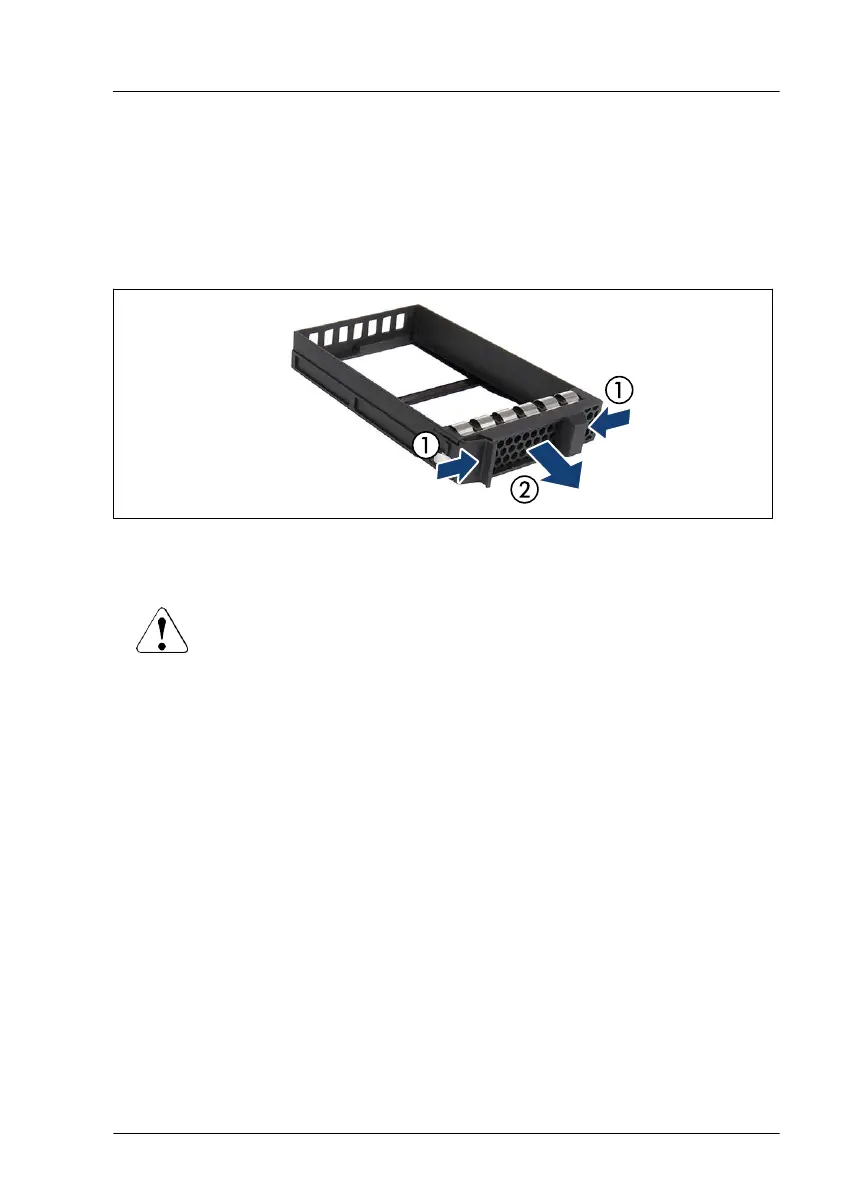

Figure 33: Removing the 3.5-inch dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay
(2).
CAUTION
▶
Keep the dummy module for future use.
▶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Operation
RX2540 M6 Operating Manual 87
