3.3.1.2 Controls on the COP

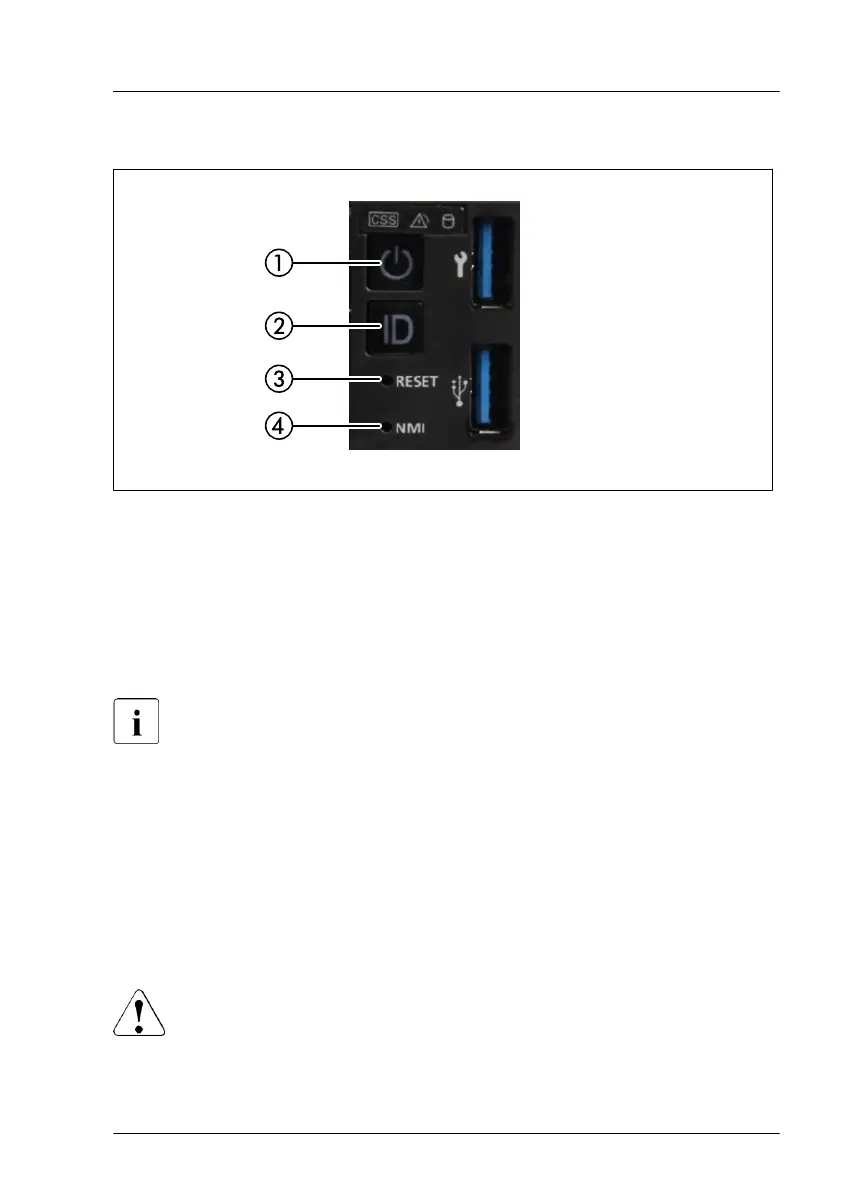

Figure 11: Controls on the COP
1 On/Off button
2
ID button
3 Reset button
4 NMI button
On/Off button (1)
Used to switch the server on or off.
If the system is running an ACPI-compliant operating system, pressing
the On/Of
f button will perform a graceful shutdown.
ID button (2)
Highlights the ID indicator on the front panel and I/O panel for easy server
identification.
Reset button (3)
Reboots the system. Press the reset button with a straightened end of a paper
clip.
CAUTION
Risk of data loss
Product description
RX2540 M6 Operating Manual 33
