Fujitsu PRIMERGY RX2540 M6 User Manual

Installing a 2.5-inch HDD/SSD module

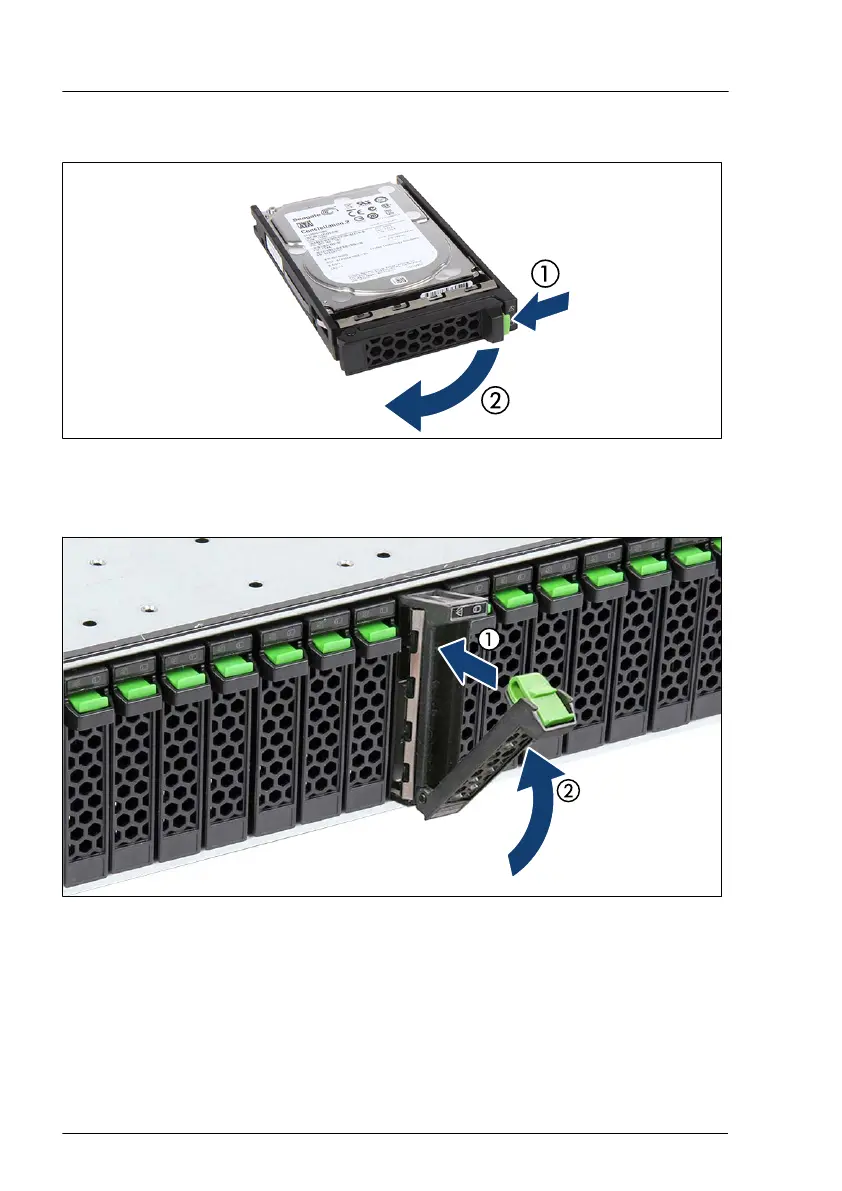

Figure 37: Opening the locking lever
▶
Pinch the green locking clips (1) and open the locking lever (2).
Figure 38: Installing the 2.5-inch HDD/SSD module
▶
Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
▶
Close the locking lever to lock the HDD/SSD module in place (2).
▶
When using a RAID array
, add the additional HDD/SSD to the RAID array.
Operation
90 Operating Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
