Installing an expansion card
▶
Remove the expansion card from its protective packaging.
For further instructions regarding controller settings, please refer to
the accompanying documentation.
▶
If applicable, attach the required slot bracket to the expansion card, see
"Installing a slot bracket" on page 1
14

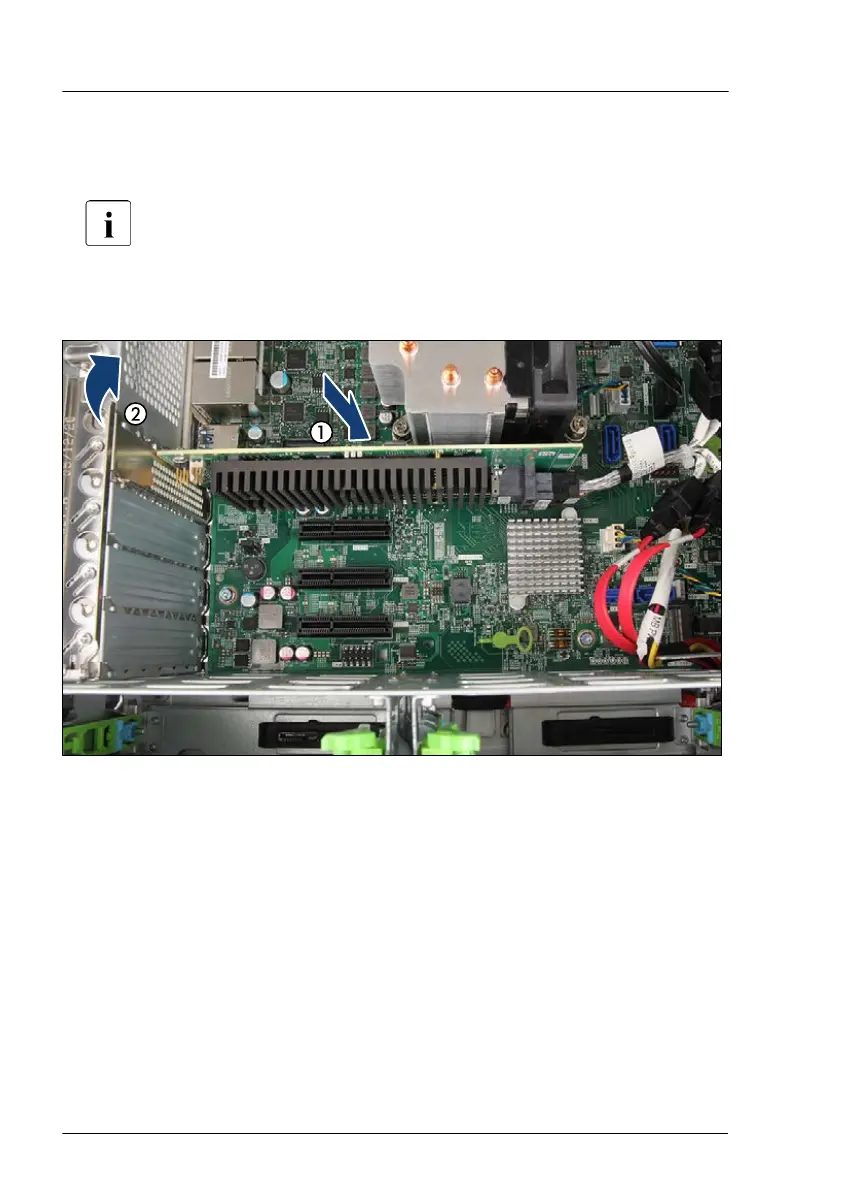

Figure 70: Installing the expansion card
▶
Carefully insert the expansion card into the desired PCI slot and press firmly
until it is fully seated in the slot (1).
▶
Close the slot cover clamp (2).
▶
If applicable, connect internal cables to the expansion card (see "Supplied
documents" on page
239).
Concluding steps
▶
"Reassembling" on page
50.
▶
If applicable, connect external cables to the expansion card.
Expansion cards
118 Upgrade and Maintenance Manual TX1310 M5
