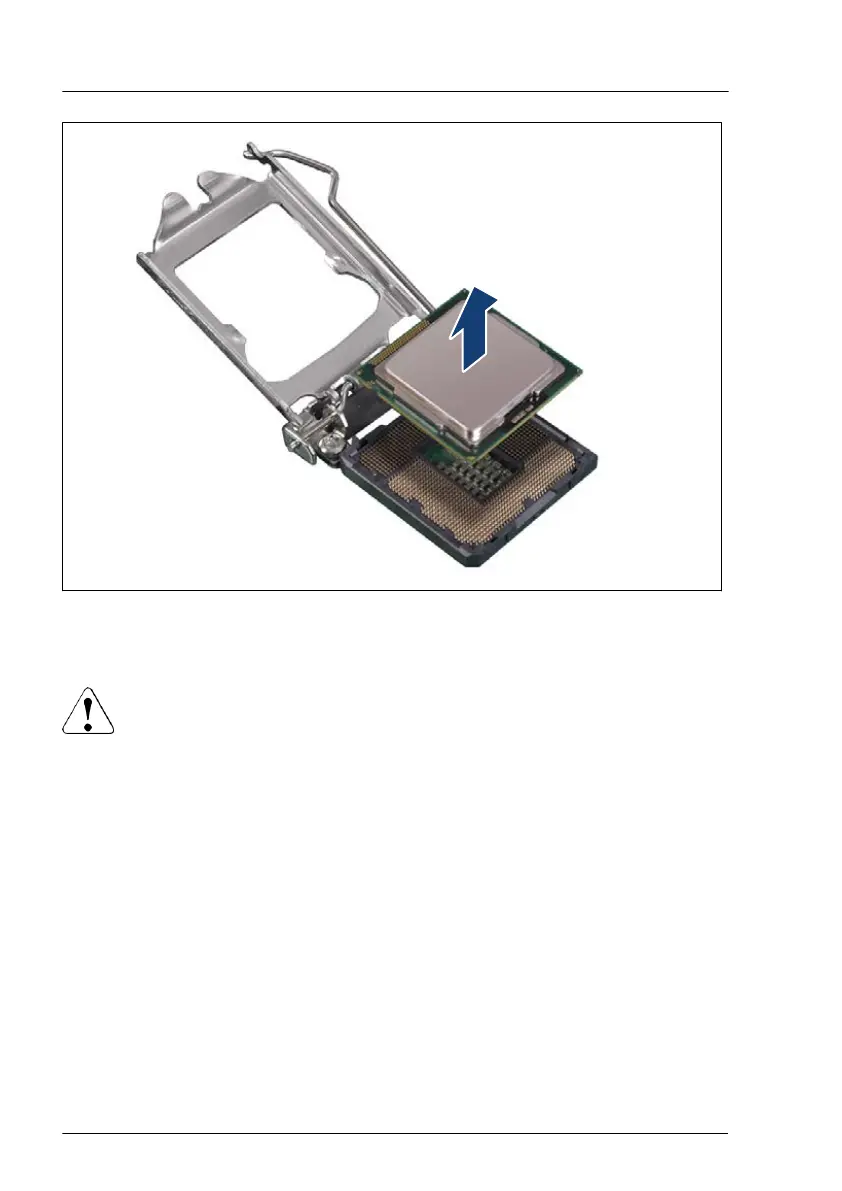

Figure 84: Removing the CPU
▶
Carefully remove the CPU from its socket in a vertical motion.
CAUTION
▶
Be careful not to touch or bend the spring contacts on the CPU
socket.
Installing the CPU
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
If applicable, remove the protective cap from the bottom side of the CPU.
Processor (CPU)
140 Upgrade and Maintenance Manual TX1310 M5
