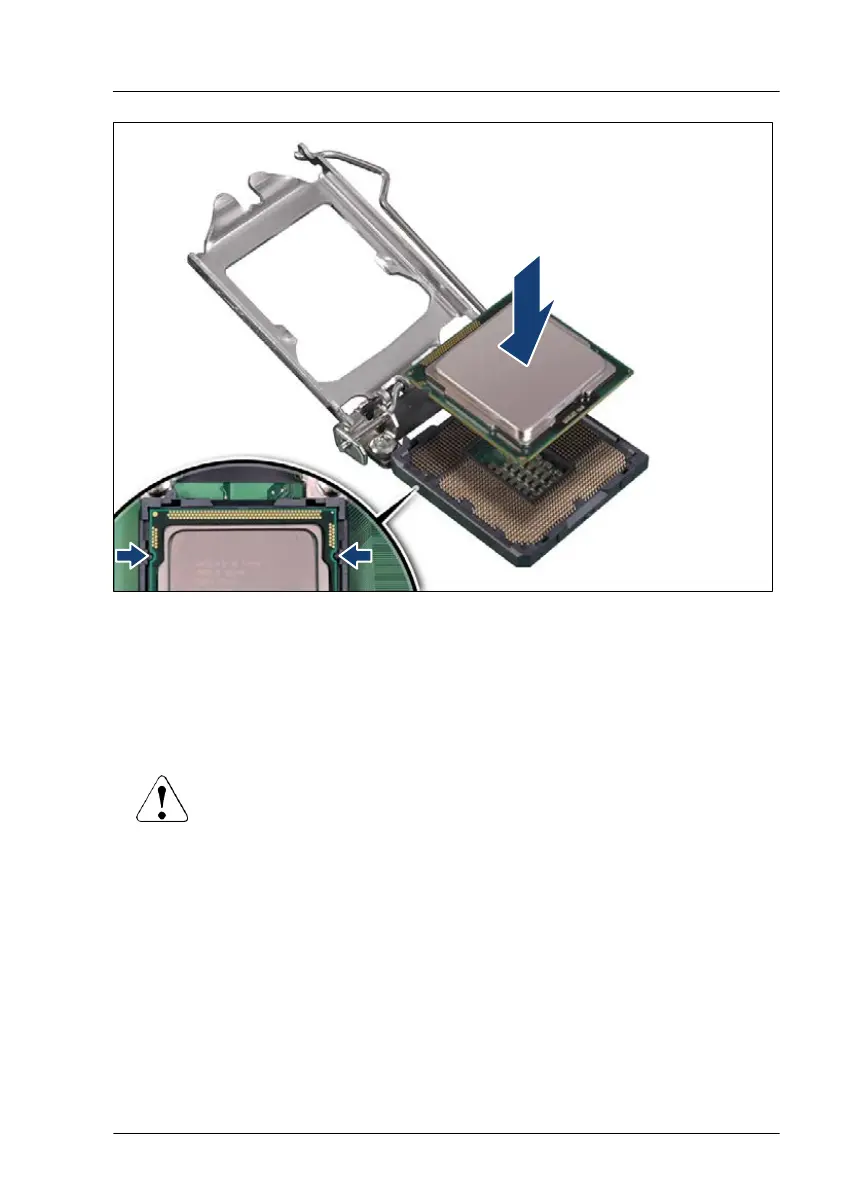

Figure 85: Installing the CPU
▶
Hold the CPU with your thumb and index finger.
▶
Make sure that the notches on the CPU align with the posts on the socket
(see close-up).
▶
Lower the CPU straight down without tilting or sliding it in the socket.
CAUTION
▶
Ensure that the CPU is level in the socket.
▶
Be careful not to touch or bend the pins on the CPU socket.
▶
Never touch the underside of the CPU. Even minor soiling such
as grease from the skin can impair the CPU’
s operation or
destroy the CPU.
▶
Ensure not to scrape or dent the CPU edges.
Processor (CPU)
TX1310 M5 Upgrade and Maintenance Manual 141
