"Disconnecting the power cord" on page 42
.
▶
"Getting access to the component" on page 43.
▶
"Removing the top HDD cage" on page 46.
Removing the bracket wall bay 2
If bay 2 is to be equipped, it is necessary to remove its front bracket wall.
CAUTION
▶
You cannot install the bracket wall again.
▶
Only remove metal bay cover before installing RDX backup drive to
comply with applicable EMC regulations and satisfy cooling
requirements.

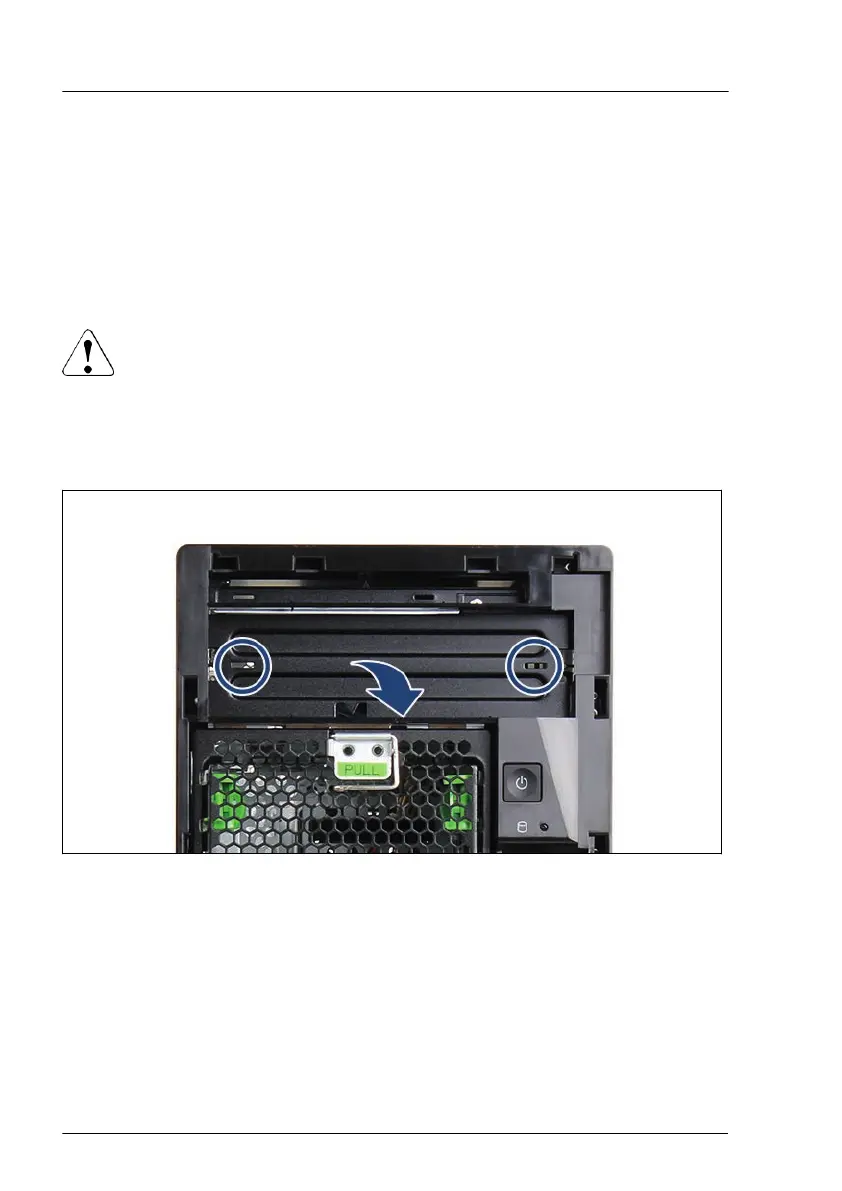

Figure 108: Removing the bracket wall bay 2
▶
Insert the screw driver into one slot (see circles) and twist it to breack out
the bracket wall.
▶
Repeat with the other slot.
Accessible drives
166 Upgrade and Maintenance Manual TX1310 M5
