"Unlocking the server" on page 39.
▶
"Removing the bay cover" on page
40.
▶
"Shutting down the server" on page 41.
▶
"Disconnecting the power cord" on page 42.
▶
"Getting access to the component" on page 43.
▶
"Removing the top HDD cage" on page 46.
Removing the RDX backup drive
For easier access to the backup drive connectors, it is recommended to
remove the PSU before installing the RDX backup drive, see
"Removing the standard PSU" on page 74
.

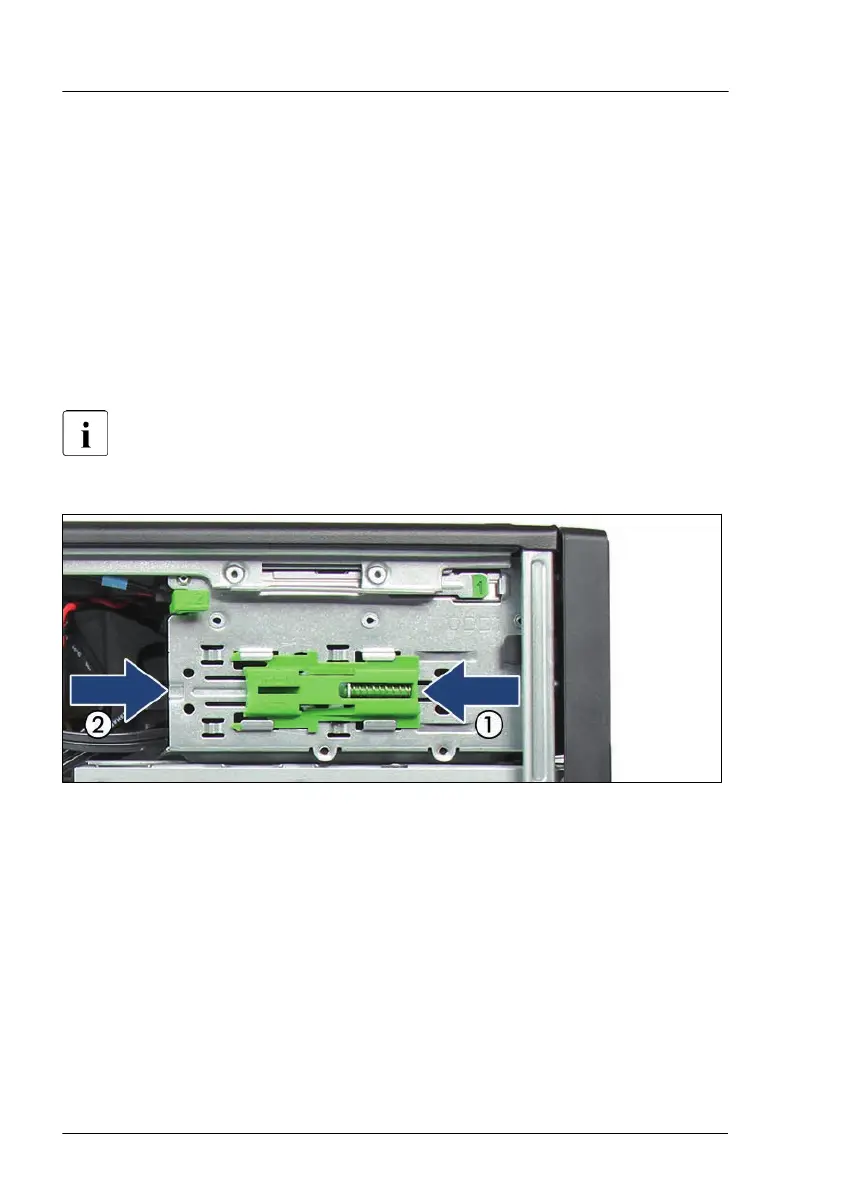

Figure 113: Removing RDX backup drive
▶
Slide the locking latch in the direction of the arrow (1) and press somewhat
out the RDX backup drive from behind (2).
▶
Disconnect all cables from the RDX backup drive.
▶
Remove the RDX backup drive out of its bay
.
Concluding steps
▶
"Installing the top HDD cage" on page
52.
▶
"Reassembling" on page 50.
