Installing the new RDX backup drive
▶
Align the four pins on the fixation plate with the screw holes in the new RDX
backup drive.

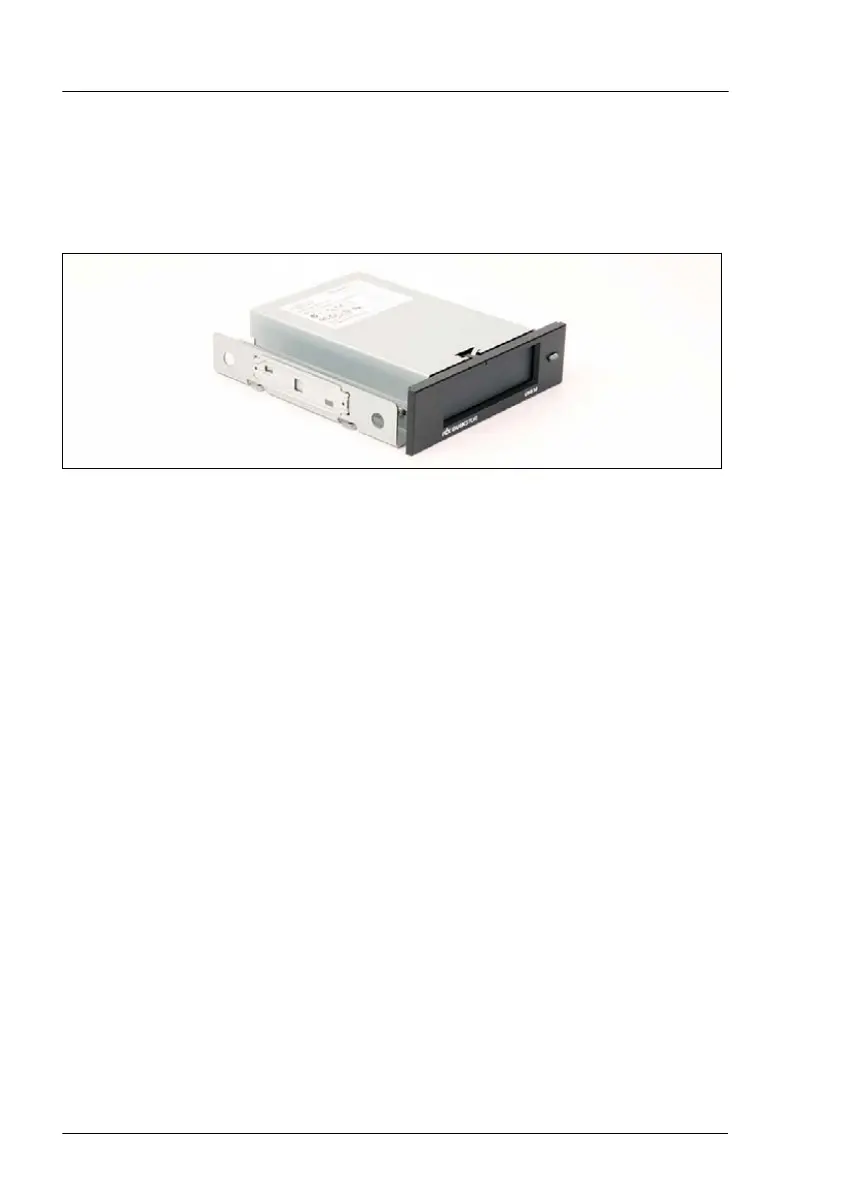

Figure 114: Attaching the fixation plate to the RDX backup drive
▶
Attach the fixation plate on the left side of the new RDX backup drive.
▶
Install the new RDX backup drive, see "Installing the RDX backup drive" on
page
168
.
Concluding steps
▶
"Installing the top HDD cage" on page 52.
▶
"Reassembling" on page 50.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Installing the bay cover" on page 58.
▶
"Locking the server" on page 59.
▶
"Reconfiguring the backup software solution" on page 64.
▶
"Resuming BitLocker functionality" on page 68.
Accessible drives
172 Upgrade and Maintenance Manual TX1310 M5
