Installing the RDX backup drive
For easier access to the backup drive connectors, it is recommended to
remove the PSU before installing the backup drive, see "Removing the
PSU" on page 76
.

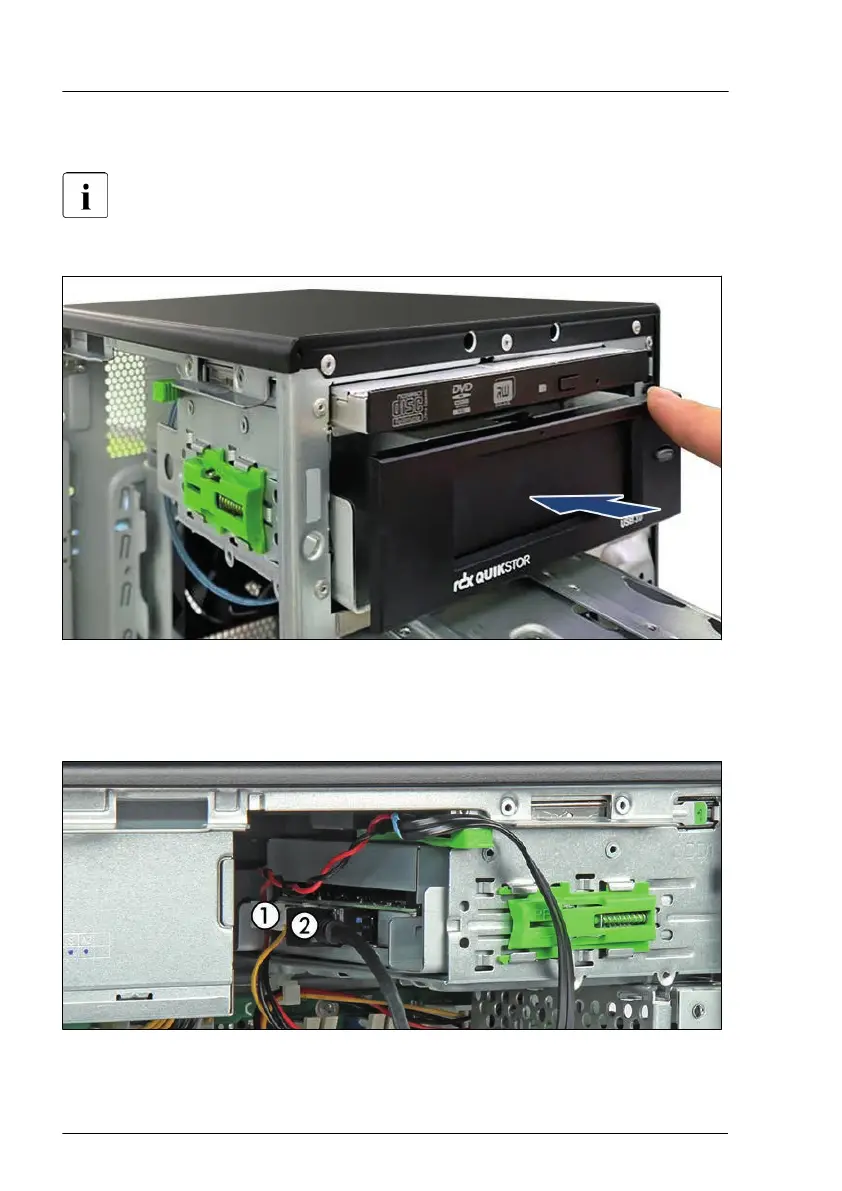

Figure 111: Inserting RDX backup drive into bay 2
▶
While pressing the fixation plate against the RDX backup drive, insert the
RDX backup drive into accessible drive bay 2.
Figure 112: Connecting cables to RDX backup drive
Accessible drives
168 Upgrade and Maintenance Manual TX1310 M5
