Fujitsu PRIMERGY TX1310 M5

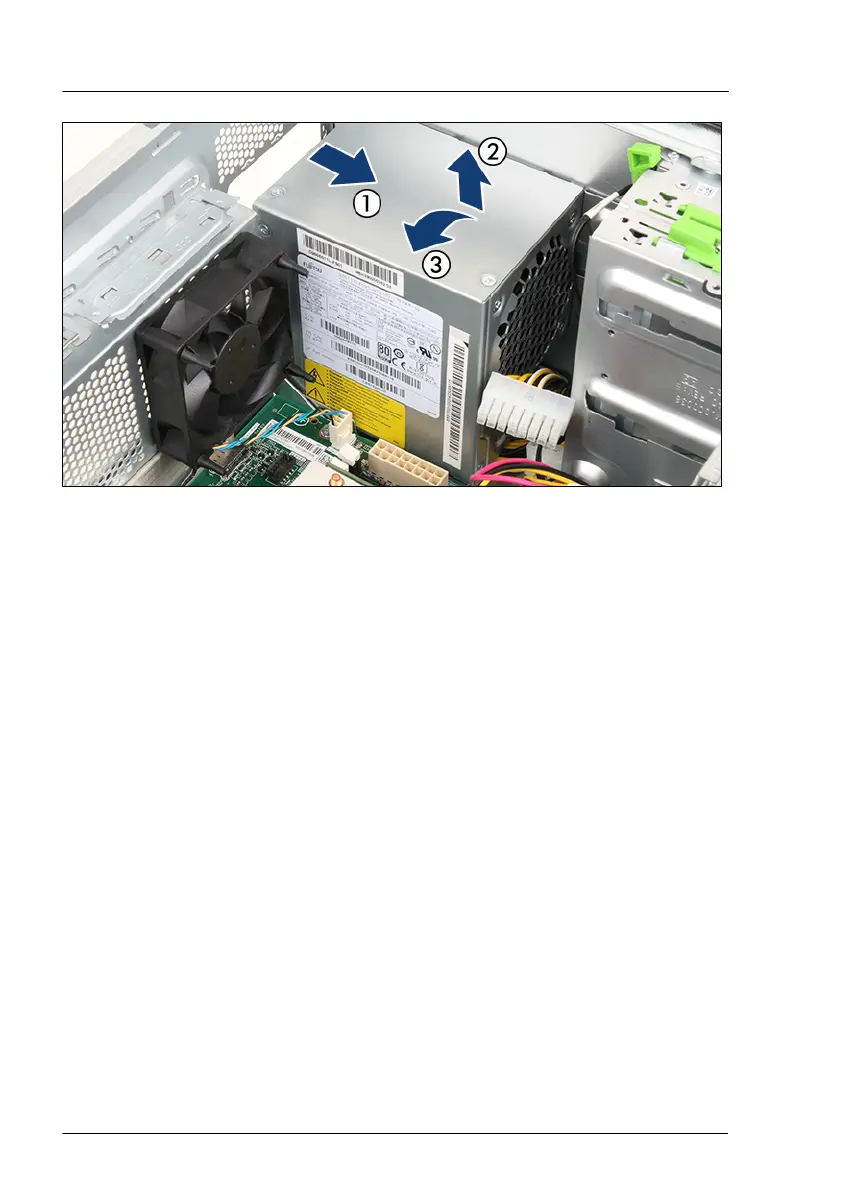

Figure 34: Removing the PSU
▶
Slide the PSU to the right about 2 cm to disengage the locking mechanism
(1).
▶
Lift the PSU about 4 cm (2) and remove it out of the chassis in a slight angle
(3).
Power supply unit (PSU)
76 Upgrade and Maintenance Manual TX1310 M5
