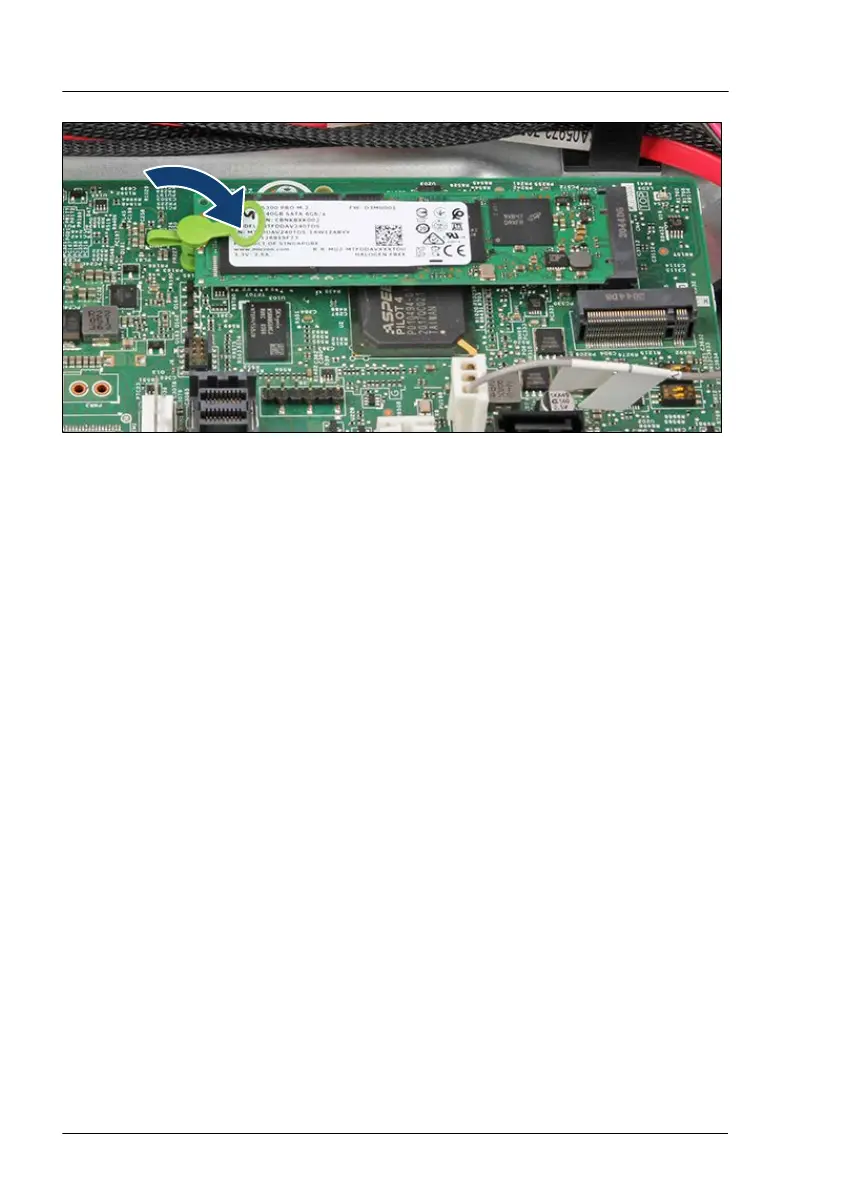

Figure 135: Installing the M.2 SSD (B)
▶
Close the M.2 lock to fasten the M.2 SSD.
Concluding steps
▶
If applicable, install an expansion card, see "Installing an expansion card"
on page
1
18.
▶
Install the front fan, see "Installing the new front fan" on page 108.
▶
"Reassembling" on page 50.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Installing the bay cover" on page 58.
▶
"Locking the server" on page 59.
Software configuration
In order to install the ESXi to the M.2 SSD, the VMware ESXi installer CD is
required. To obtain the ESXi installer CD by purchasing the OEM Media Kit, or
downloading the ESXi Custom Image ISO file from the VMware website and
burn the image to the CD.
https://www.vmware.com/go/download-vsphere
Install the ESXi to the M.2 SSD by following the steps below:
System board and components
200 Upgrade and Maintenance Manual TX1310 M5
