Fujitsu PRIMERGY TX1310 M5

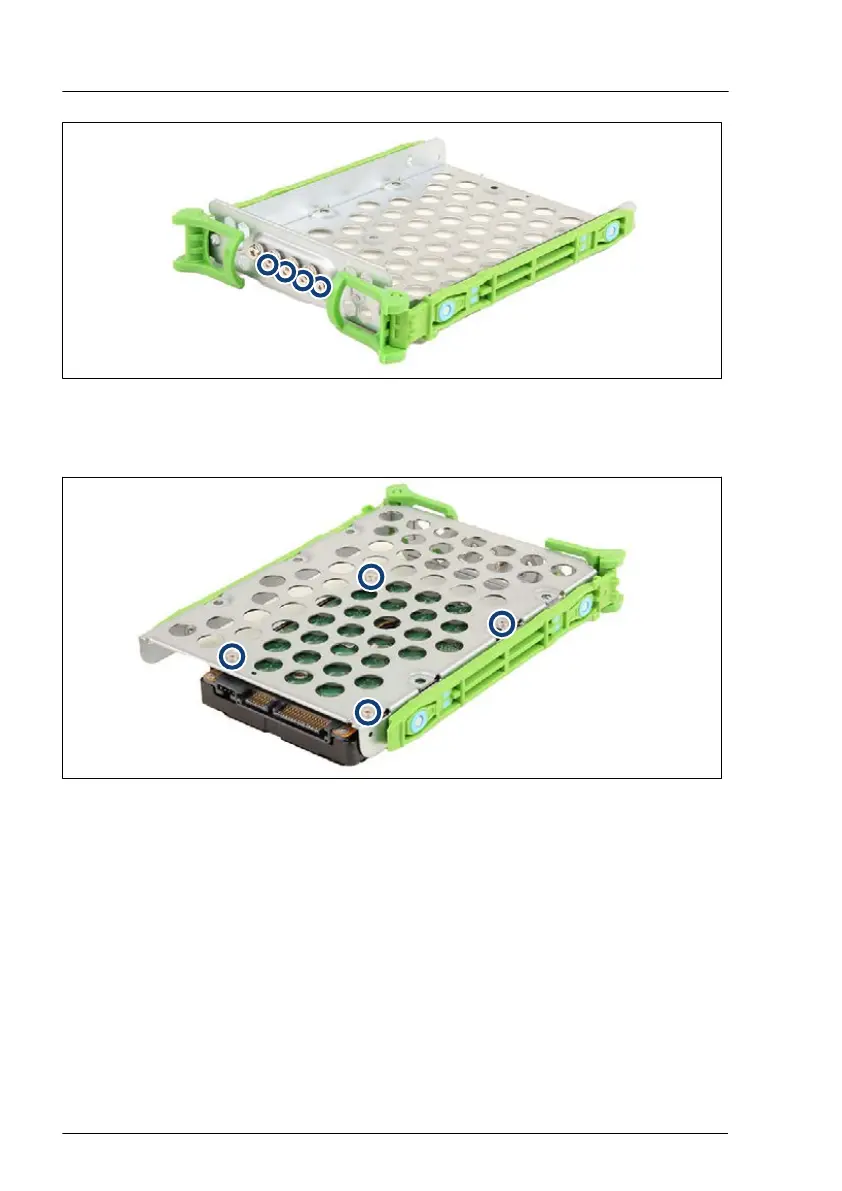

Figure 40: Removing the screws from the 3.5-inch HDD carrier
▶
Remove the four screws from the 3.5-inch HDD carrier.
Figure 41: Attaching the 2.5-inch HDD to the 3.5-inch HDD carrier
▶
Fasten the 4 screws to the 3.5-inch HDD carrier and attach the HDD to the
carrier (see circles).
Hard disk drives (HDD)
84 Upgrade and Maintenance Manual TX1310 M5
