2. Mounting on a standard 60 mm flush-mounted box (3 holes)

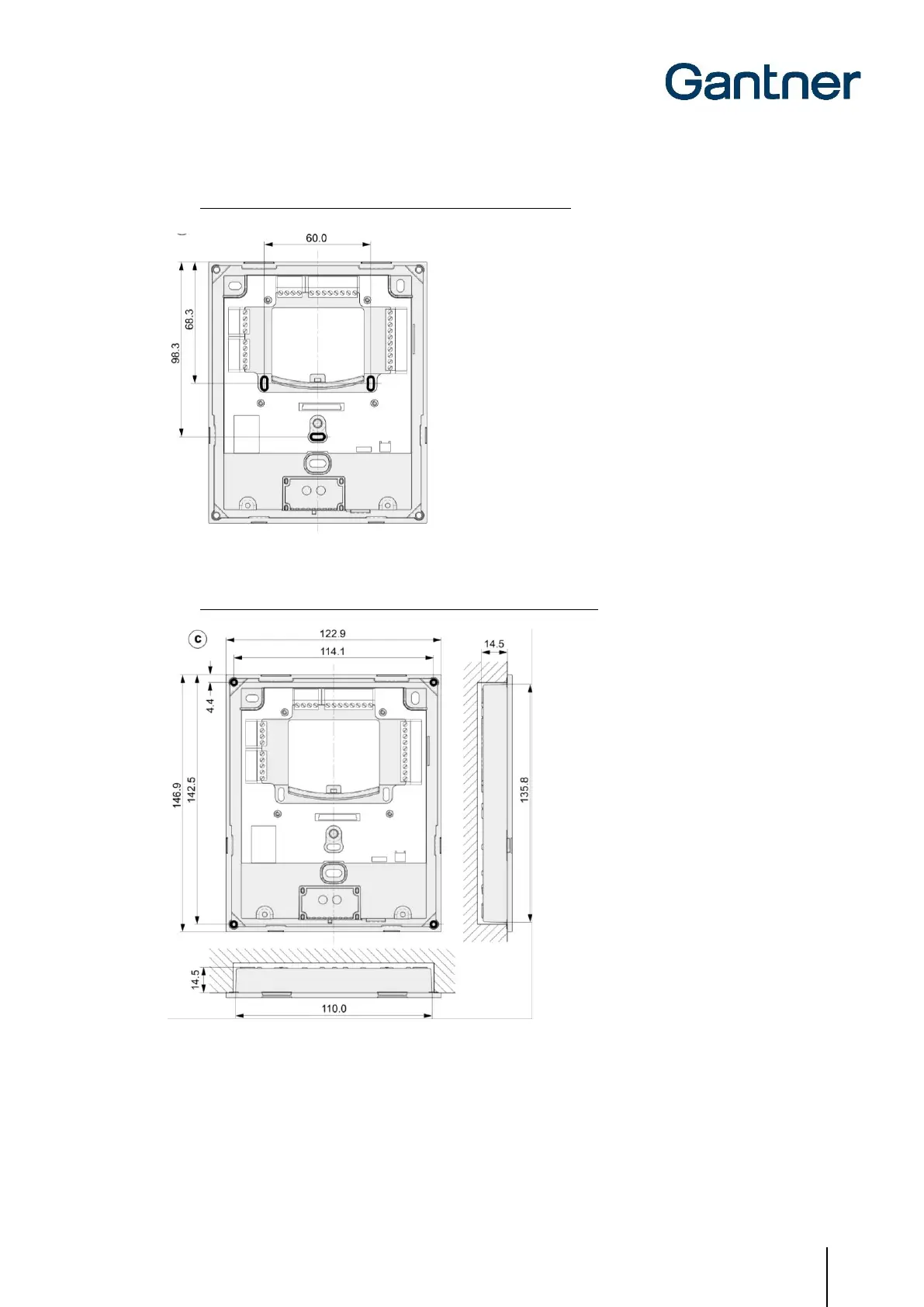

Figure 3.3 - Installation on standard flush-mounted box (measurements in mm)
3. Semi-flush mounting (approx. 110 x 136 mm cutout and 4 holes)
Figure 3.4 - Semi-flush mounting (measurements in mm)
► Align the rear part with the mounting holes while guiding the connection cables (see "4 ELECTRICAL
CONNECTIONS") through the central opening in the rear part.
► Using screws, attach the rear part onto the wall or into the desktop.
