GT7 Terminal
Installation
www.gantner.com
HB_GT7-2x00-3x00--EN_12
21
► Swing the front part forward to meet the rear part (6).
► Gently press the front part onto the rear part until it clicks into the tabs around the edge of the rear part (7). Do
not exert excessive pressure. If the front part cannot be attached without great effort, check the tabs and the
central connector, and repeat the process.
NOTE! Through this process, the front part is electrically connected to the rear part via the central connector
(4). The front part must sit flush with the rear part and be securely attached.
► Screw the fixing screw (8) into the front part in the location shown below to firmly attach it to the rear part.

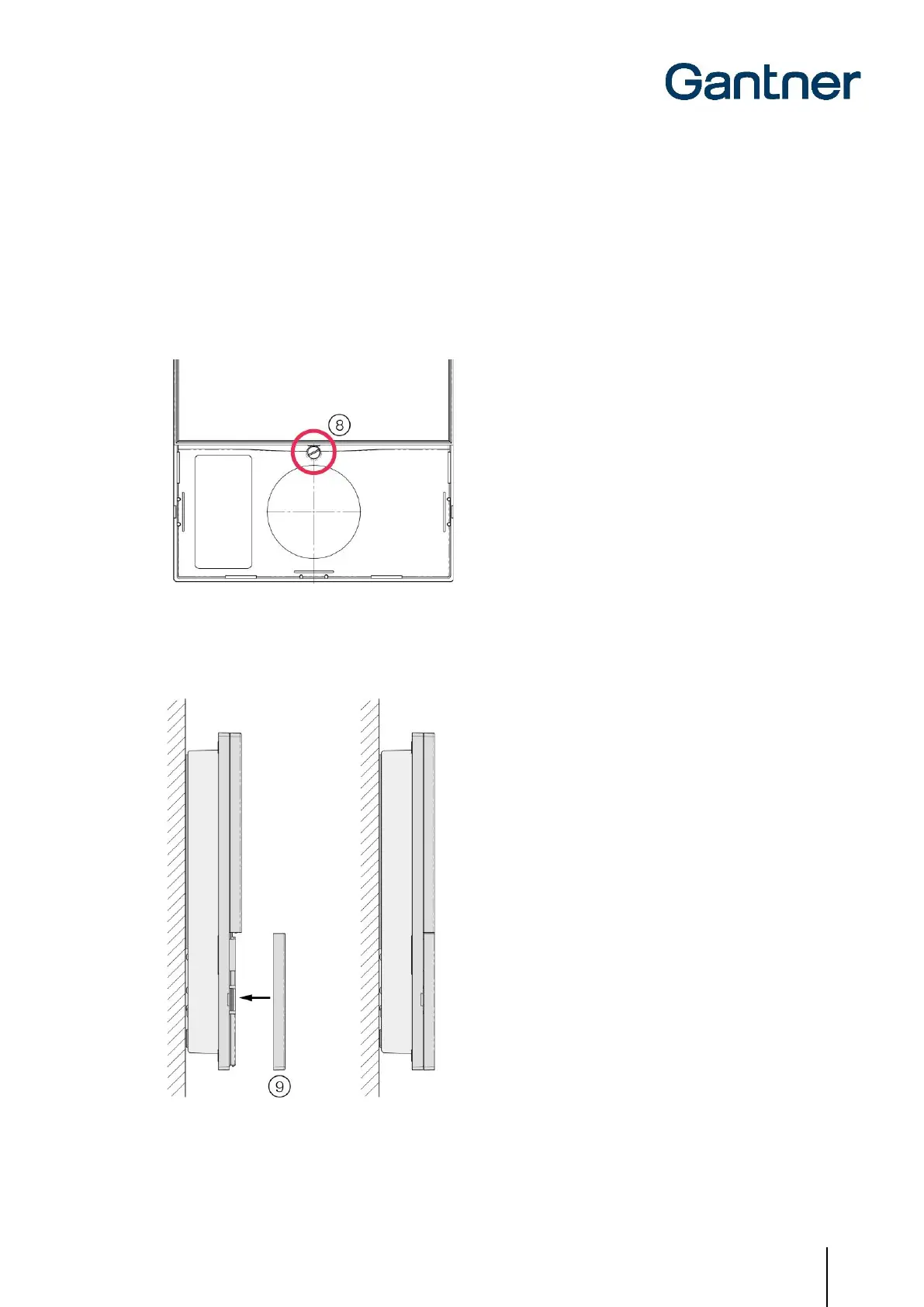

Figure 3.7 - Fixing screw for top part
► Attach the RFID reader cover (9) to the front part. It locks into place via 3 tabs.
NOTE! The reader cover must sit flush with the front part and be securely attached.
Figure 3.8 – Attaching the RFID reader cover
► Remove the protective film from the reader cover.
