Letters in the airway module name indicate:
•
E - E series plug-in gas module.
• M - M series plug-in gas module.
• E-s - CARESCAPE series plug-in gas module.
• C - CO2 and N2O.
• A - anesthetic agents.
• i - agent identification.
• O - patient O2.
• V - patient spirometry.
• X - gas exchange.
E and M series airway modules
MD.60.008
1
2
3
4
5
6
1. D-fend water trap
2.
Sampling line connector
3. Water trap latch
4. Reference gas inlet
5. Sample gas outlet
6. Connectors for patient spirometry

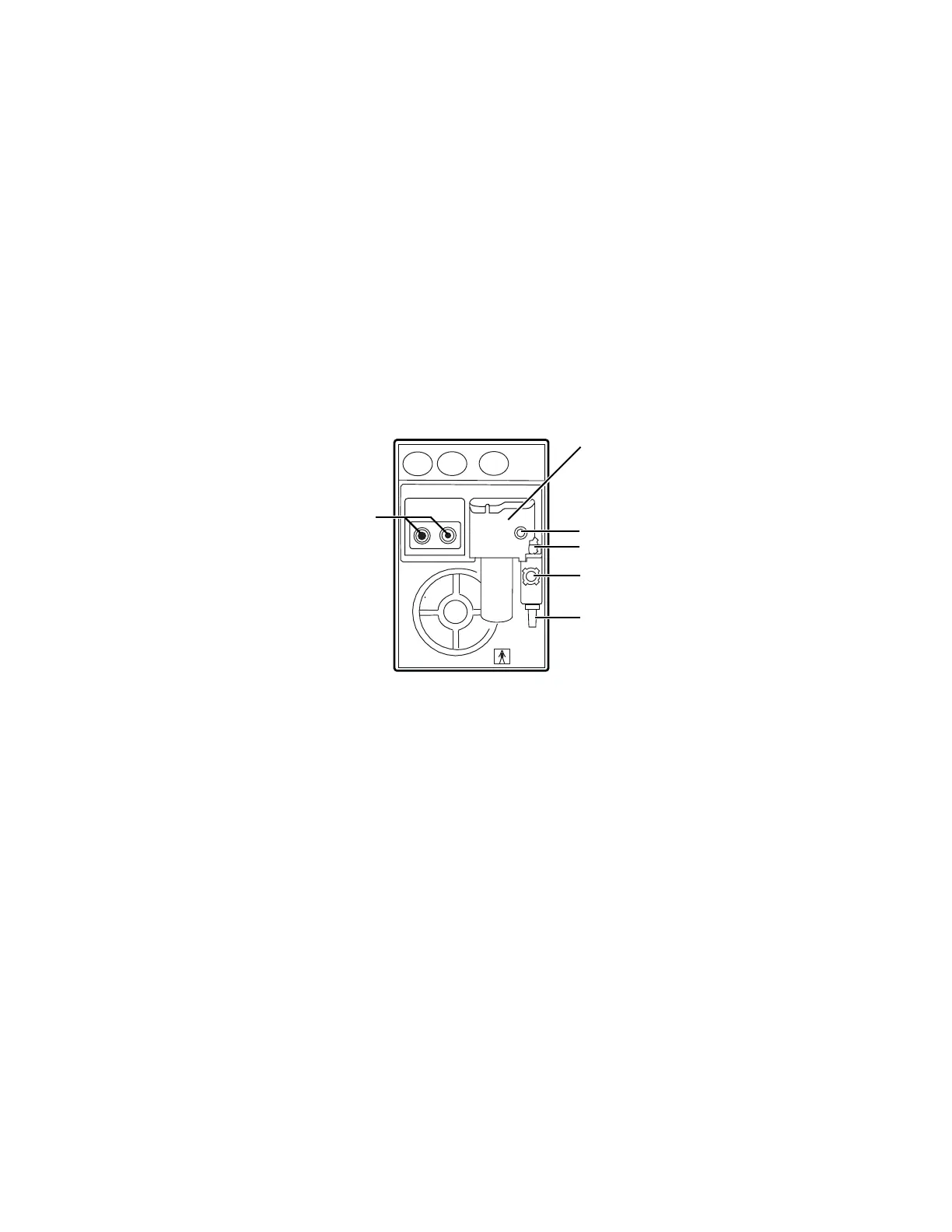

Figure 6-1 • E- and M-series compact airway module
6 Airway modules
2067226-001 6-3
