the cassette do not come in contact with the machine or any
other object.
2.
Align the notches on the bottle adapter to the agent bottle collar
and tight the adapter onto the bottle.
3. Insert the keyed filler into the agent filling port on the cassette.
Make sure that the square end of the filler is flus with the
cassette body as shown.
4. Lock the keyed filler by turning the lock and fill wheel fully
clockwise.
5. Turn the bottle upside down.
• Check that the liquid flows evenly into the cassette.
• If liquid does not flow evenly into the cassette, tighten the
wheel until the liquid starts to flow.
6. Watch the liquid level indicator. When the cassette is full, lower
the bottle to stop the flow of liquid.
7. Turn the lock and fill wheel a half turn counterclockwise to close
the filling port. Wait for the residual anesthetic agent to trickle
back into the bottle.
8. Turn the lock and fill wheel fully counterclockwise, and remove
the keyed filler from the filling port.
9. Remove the bottle adapter from the anesthetic agent bottle. Put
the cap back on the agent bottle.
Filling with Quik-Fil system
AB.60.018

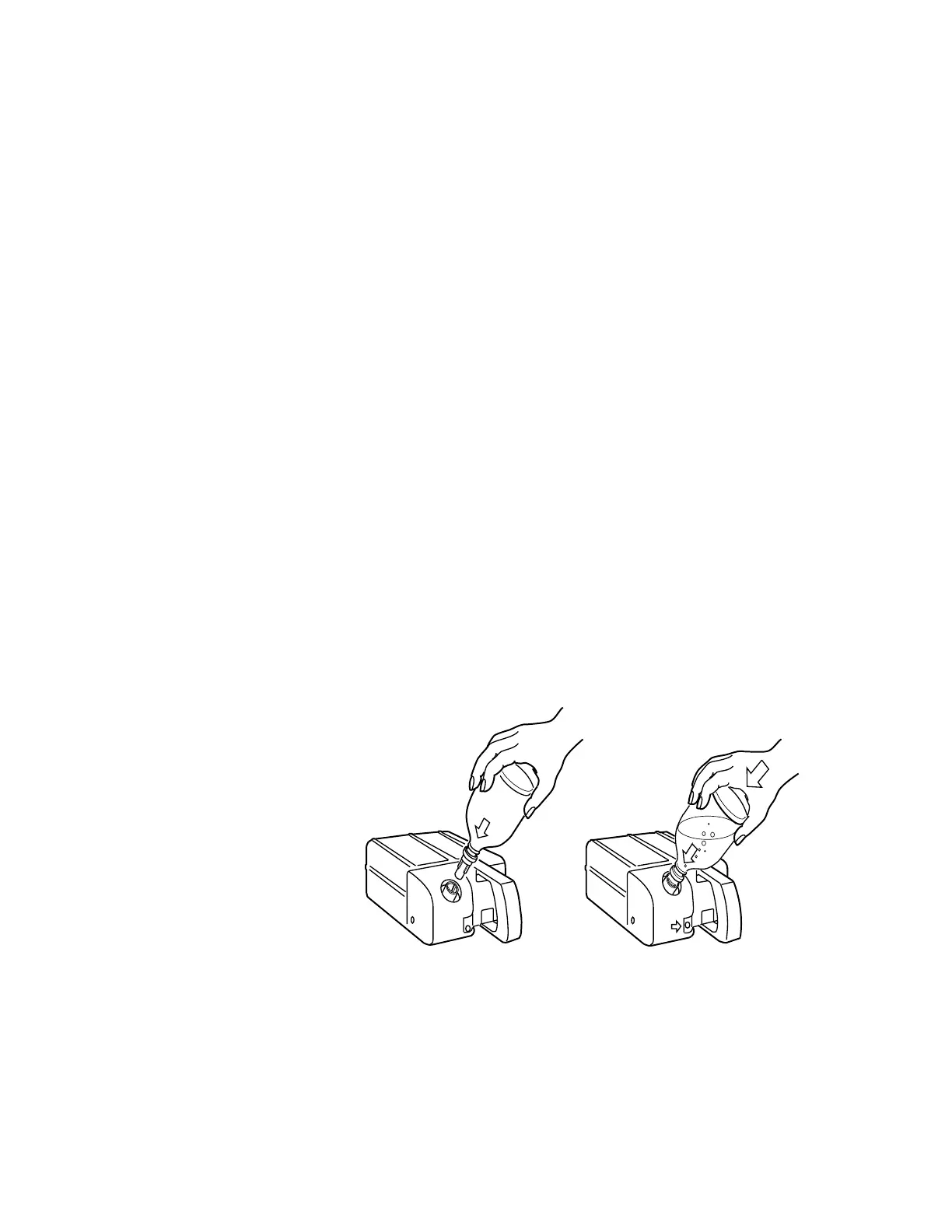

Figure 13-11 • Aladin cassette with Quik-Fil system
Do not open or press the cassette filling port or the gas
connection valves with fingers or any kind of instrument.
Anesthetic agent liquid or gas may squirt into the air.
WARNING
13 Vaporizer cassettes
2067226-001 13-17
