Venturi suction regulator (optional)
The venturi suction regulator uses the system air or O2 supply
source. Connect the collection bottle connection on the overflow
safety trap to the collection bottle.
1. Venturi muffler
2.
Overflow safety trap
3. Splash guard
4. Collection bottle connection

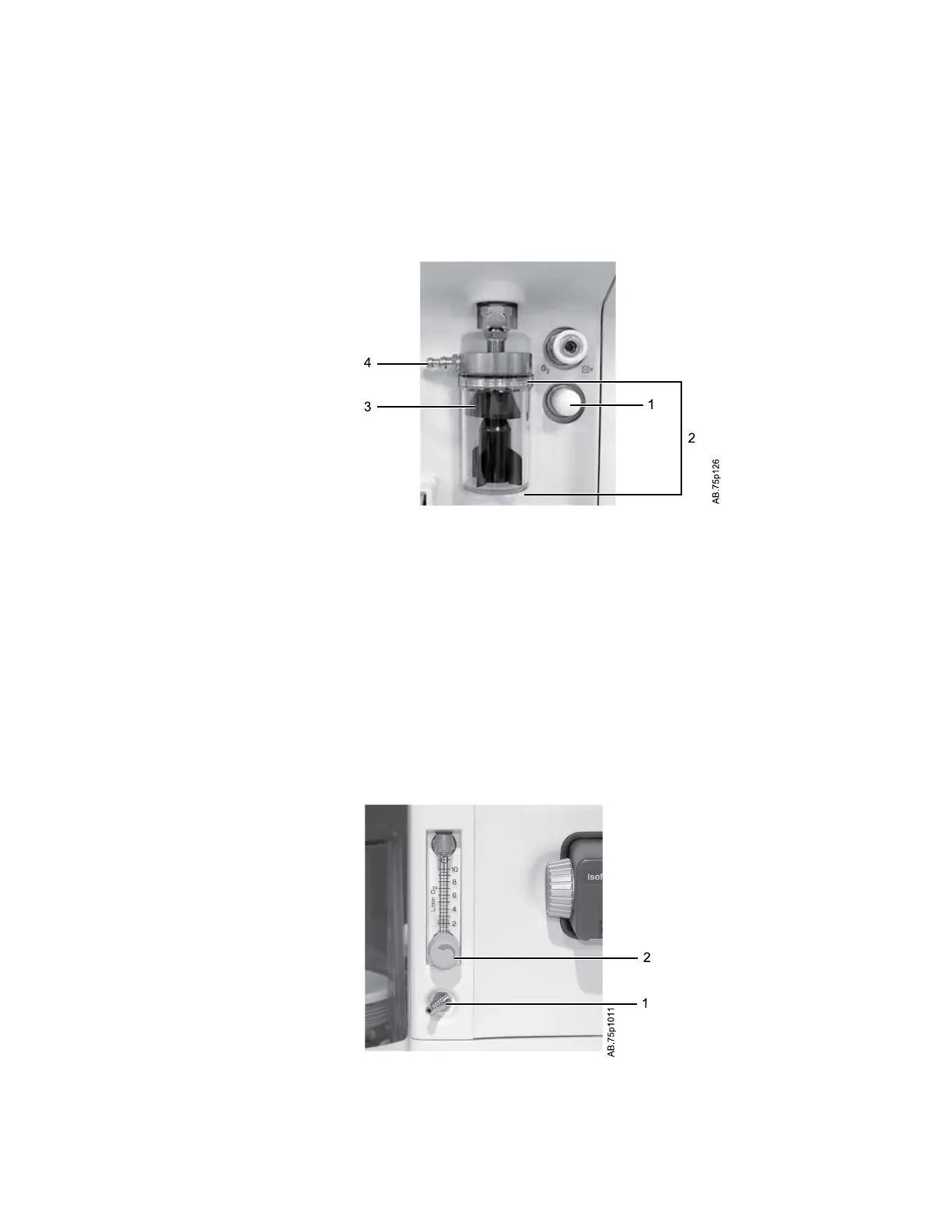

Figure 8-4 • Venturi suction
Auxiliary O2 flowmeter (optional)
1. Auxiliary O2 outlet
Aisys CS²
8-16 2067226-001
