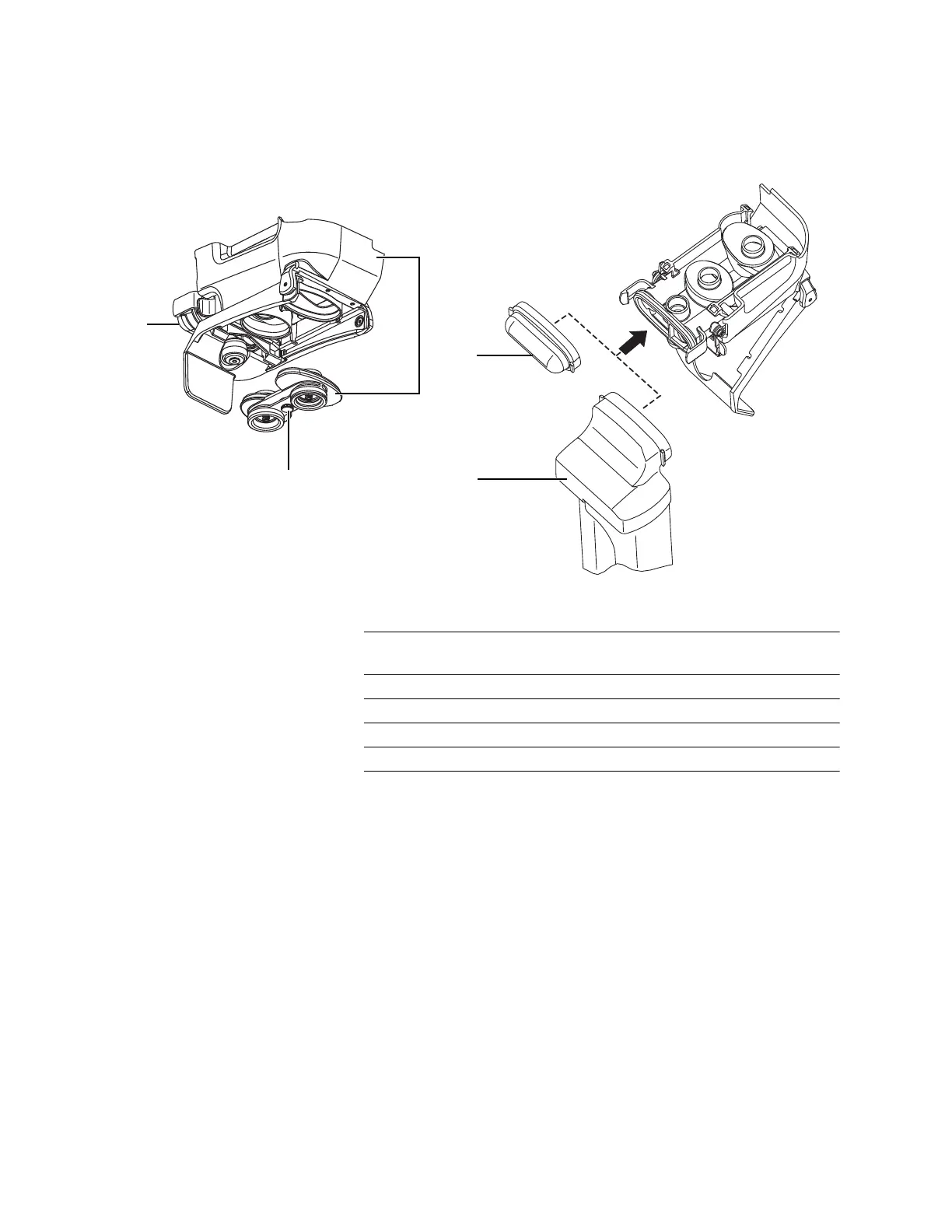

EZchange canister system
AB.82.131
2
3
4
3
1
Item
Description
Stock number
1
EZchange canister module, includes valve and
cap
1407-7021-000
2
Valve
1407-7023-000
3
Cap
1407-3130-000
4
Condenser
1407-7024-000
-
EZchange canister module with condenser
1407-7027-000
Aisys CS²
10-10
2067226-001
173
175
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
13
Intended Use
14
Indications for Use
14
General Information
14
Serial Numbers
16
Trademarks
17
Symbols Used in the Manual or on the Equipment
18
Symbols Used on the Equipment
18
Symbols Used on the User Interface
21
Typeface Conventions Used
22
Abbreviations
23
System Information
26
System Classification
26
Device Standards IEC 60601-1:2005
26
Device Standards IEC 60601-1:1988
26
Integral System Components
27
Not Integral System Components
27
System Accessories
27
System Safety
28
Preparing for Use
28
Inspecting the System
29
Electrical Safety
30
2 System Controls and Menus
33
System Overview
34
Using the Brake
36
Using the O2 Flush Button
36
Positioning the Display
36
Advanced Breathing System Components
38
Using the Bag Support Arm
39
Aladin Cassette Controls
40
Display Controls
41
Touch Points
42
Measured Value Touch Points
42
Active Alarm Touch Points
43
Anesthesia System Display
44
Digit Fields
45
Waveform Fields
45
Split Screen Field
45
Display Navigation
47
Using Menus
47
Using the Comwheel
48
Using Quick Keys
48
3 Operation
49
System Operation Safety
50
Turning on the System
51
Start a Case
52
Minimum Alveolar Concentration
52
Starting a Case Using Default Settings
53
Starting a Case Using Custom Settings
53
End a Case
54
Turning off the System
55
Ventilator Setup
56
Changing Ventilator Mode
56
Changing Ventilator Settings
56
Optional Ventilator Procedures
56
Auto Limits
57
Setting Auto Limits
57
Gas Setup
58
Changing Gas Settings
58
Changing Balance Gas
58
Changing Circuit Type
58
System Setup
61
Patient Demographics
61
Screen Setup Menu
61
Fresh Gas Usage
64
Alarm Setup
65
Setting CO2 Alarms
65
Setting MV TV Alarms
66
Setting Alarm Limits
66
Viewing Alarm History
67
Setting Alarm Volume
67
Setting Apnea Delay
67
Silencing Leak Audio Alarms
67
Setting Auto MV Limits
68
Setting to Default Limits
68
Alarms on off
69
Disable Alarm Limits
69
Next Page
70
Trends
71
Setting Trends
71
Spirometry
72
Setting Loop Type
72
Setting Loop Graph Scaling
73
Setting Patient and Sensor Type
73
Setting the Data Source
73
Setting Spirometry Volume Type
74
Saving, Viewing, and Deleting Spirometry Loops
74
Procedures
75
Pause Gas Flow
75
Cardiac Bypass
75
Vital Capacity
76
Cycling
77
Timer Function
79
Using the Timer
79
Ecoflow
80
Using Ecoflow
81
Alternate O2 Control
82
Using Alternate O2 Control
82
Ezchange Canister Mode
84
Using Ezchange Canister Mode
85
Condenser
86
Draining the Condenser
86
Auxiliary Common Gas Outlet
88
Using the ACGO
88
4 Preoperative Checkout
91
Every Day before Your First Patient
92
Before Every Patient
93
5 Preoperative Tests
95
Aladin Cassette Installation
96
Flow and Pressure Calibration
97
Circuit Compliance Compensation
98
Checkout Menu
99
Full Test
100
Vent and Gas
100
Circuit Leak
100
Circuit O2 Cell
101
External Gas Monitor
101
Individual Tests
102
Vent and Gas
102
Circuit Leak
102
Circuit O2 Cell
102
Low P Leak
102
Low P Leak (Machines with ACGO)
103
Agent Delivery
103
Positive Low Pressure Leak Test (ACGO Systems Only)
104
Airway Modules
106
6 Airway Modules
107
E and M Series Airway Modules
107
CARESCAPE Airway Modules
108
Connecting the Airway Module
109
Parameters Setup
110
Data Source
110
Automatic Agent Identification
111
Calibrating the Airway Module
112
7 Alarms and Troubleshooting
113
Alarms
114
Alarm Priorities
114
Pausing Alarms
114
Cancelling Audio Pause
115
Display Changes During Alarms
115
De-Escalating Alarms
115
Battery Indicator
115
Internal Failure
116
Informational Tones
116
List of Alarms
117
Sustained Pressure Threshold
124
Alarm Ranges
125
Alarm Tests
127
Breathing System Problems
129
Electrical Problems
130
Pneumatic Problems
131
8 Setup and Connections
133
Setup Safety
134
Moving and Transporting the System
136
Setting up the Absorber Canister
137
When to Change the Absorbent
138
Removing a Canister
139
Removing an Ezchange Canister
139
Filling the Reusable Multi Absorber Canister
140
Electrical Connections
142
Mains Inlet
142
Equipotential Stud
142
Outlets
142
Serial Port
143
Pneumatic Connections
144
Pipeline Inlets
144
Scavenging
144
Sample Gas Return Port
146
Pneumatic Power Outlet
147
Vacuum Suction Regulator (Optional)
147
Venturi Suction Regulator (Optional)
148
Auxiliary O2 Flowmeter (Optional)
148
Installing Gas Cylinders
150
Installing Cylinders with Pin Indexed Yokes
150
Installing Cylinders with DIN Connections
150
Performing a High-Pressure Leak Test
150
Attaching Equipment to the Top of the Machine
152
Passive AGSS
153
Connecting Passive AGSS
153
Active AGSS
154
Connecting Active AGSS with a Flow Indicator
154
Connecting Active Adjustable AGSS
155
9 User Maintenance
157
Maintenance Safety
158
Repair Policy
159
Maintenance Summary and Schedule
160
Circuit O2 Cell Replacement
161
Calibration Menu
162
Flow and Pressure Calibration
162
Circuit O2 Cell
162
Airway Gas Calibration
163
Water Buildup
163
10 Parts
165
Flow Sensor Module
166
Breathing Circuit Module
167
Bellows
168
Complete Advanced Breathing System
169
Absorber Canister
170
Exhalation Valve Assembly
171
Agss
172
Ezchange Canister System
174
Condenser
175
Test Tools and System Parts
176
11 Specifications and Theory of Operation
177
System Pneumatic Circuit
178
Gas Supplies
180
O2 Flow
180
Air and N2O
180
Mixed Gas
181
Ezchange Canister
181
Condenser
181
Pneumatic Specifications
182
Gas Supplies
182
ACGO Port Relief
182
Non-Circle Circuit Relief
182
Pneumatic Power Outlet
183
Electrical Block Diagram
184
Electrical Power
186
Power Cord
186
Battery Information
186
Flow Specifications
188
Breathing System Specifications
189
Gas Scavenging
190
Physical Specifications
192
Lower Dovetail Loading
192
Upper Dovetail Loading
193
Environmental Requirements
194
Airway Module Specifications
195
Gas Specifications for E-, M-Series Modules
195
Gas Specifications for CARESCAPE Modules
196
Typical Performance
197
Suction Regulators (Optional)
198
Ventilator Theory
199
O2 Monitoring Theory of Operation
199
Ecoflow Theory of Operation
200
Ventilation Modes
200
Ventilation Modes Factory Default Settings
211
Ventilation Mode Transition
212
Ventilator Operating Specifications
213
Pneumatics
213
Fresh Gas Compensation
213
Pressure
213
Volume
213
Oxygen
214
Ventilator Accuracy Data
215
Electronically Controlled Vaporizer and Aladin Cassette
216
Aladin2 Cassettes
220
Aladin Cassettes
220
Electromagnetic Compatibility (EMC)
222
Cables
222
Guidance and Manufacturer's Declaration - Electromagnetic Emissions
223
Guidance and Manufacturer's Declaration - Electromagnetic Immunity
223
Power Immunity
224
Radiated Immunity
224
Recommended Separation Distances
226
12 Super User Mode
227
Super User Mode
228
Gas Usage
229
Resetting Cumulative Gas Usage
229
Setting Ecoflow
229
Setting Agent Costs
229
System Configuration
231
Display Settings
231
Ventilator Settings
231
Alarm Settings
232
Parameter Settings
232
Trends Setup
234
Page Setup
234
Case Defaults
236
Configuring Case Defaults
236
Setting Case Name
236
Setting Volume Apnea Defaults
236
Default Case Type Settings
237
Gas Controls
241
Setting Gas Preset Values
241
Setting Fresh Gas Controls
241
Procedures Setup
242
Setting Vital Capacity Defaults
242
Setting Cycling Controls and Settings
242
Vaporizer
244
Aladin2 Cassette Variants
244
Aladin Cassette Variants
245
Changing a Cassette During a Case
248
Removing a Cassette
249
Installing a Cassette
250
Cassette Maintenance
251
Cleaning
251
Draining Cassettes
251
Draining Halothane Cassettes
252
Filling Aladin2 Cassettes
253
Filling with Easy-Fil System
253
Filling with Quik-Fil System
255
Filling with Saf-T-Fill Bottle
256
Filling Aladin Cassettes
258
Filling with Keyed Filler System
258
Filling with Quik-Fil System
259
Filling with Saf-T-Fil Bottle
260
