1. Bag support arm
2.
Auxiliary Common Gas Outlet (ACGO) switch
3. ACGO port
4. EZchange canister module (CO2 bypass)
5. Ezchange canister release
6. Condenser
7. Condenser drain button

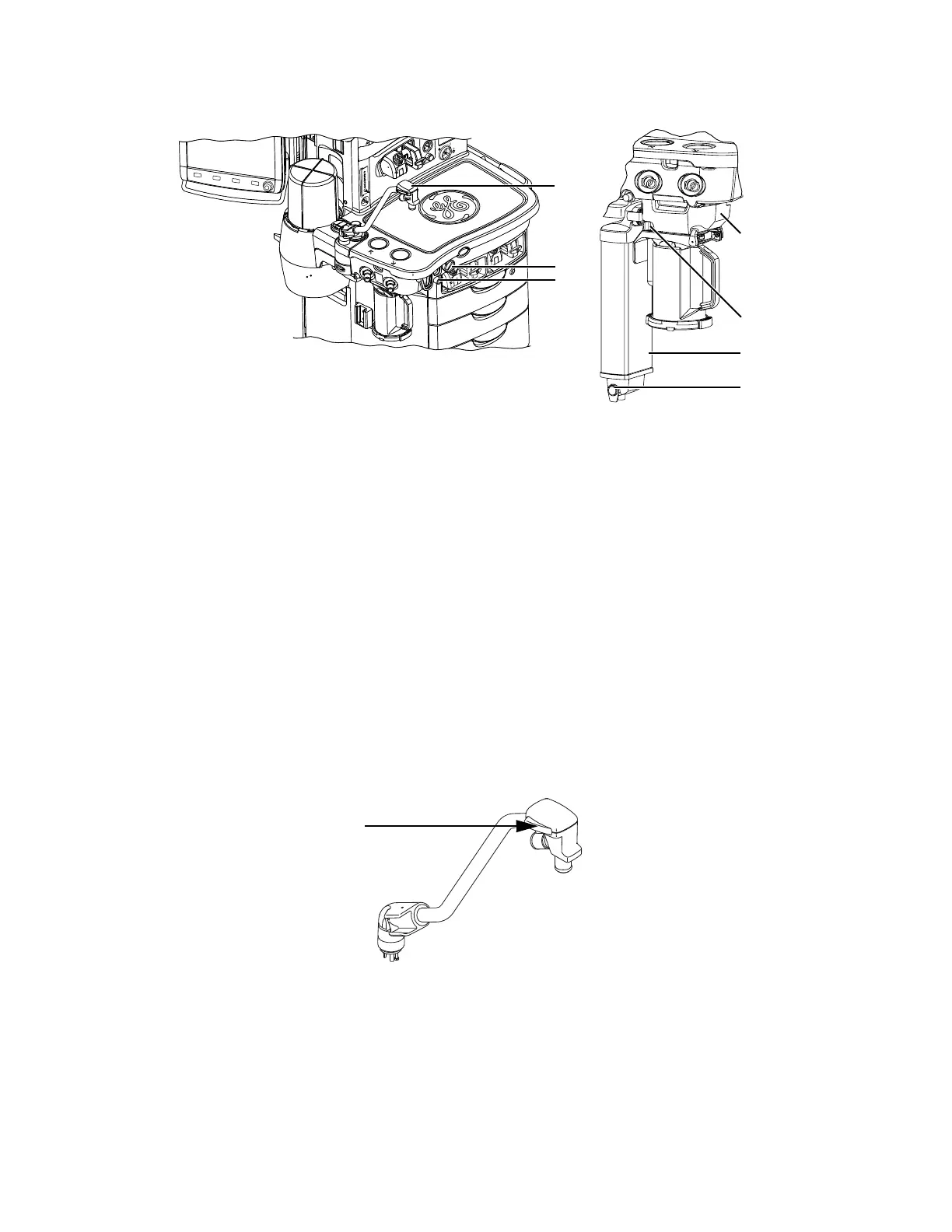

Figure 2-4 • Breathing system options
Using the bag support arm
Use the optional bag support arm to hold the breathing circuit bag.
AB.82.023
1. To raise the bag support arm, squeeze the button and rotate the
arm up the top position.
2. To lower the bag support arm, squeeze the button and rotate the
arm down to the lower position.
