GE Dash 4000 Service Manual

Field replaceable units: Remove or replace handle assembly
7-14 Dash 3000/4000/5000 2000966-542D

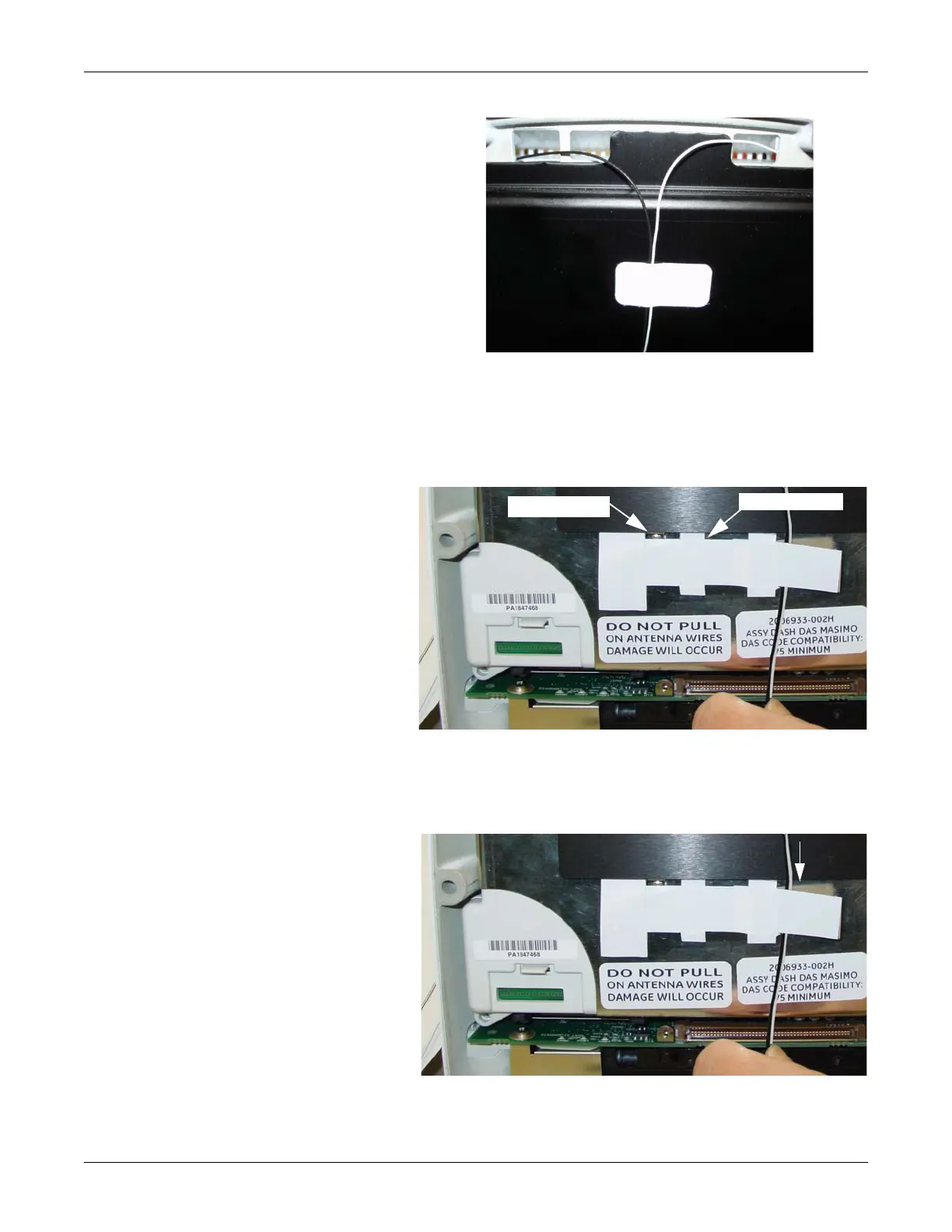

f. Remove the center section of the protective backing from the long
antenna label.
g. Position the antenna label under the heat shield with the first
and second tabs of the antenna label straddling the screw
opening in the DAS assembly. Press to secure into place.
h. Route the cables under the righthand side of the antenna label as
shown. Be sure that the cables are lying flat and are not twisted
around each other.
i. Remove the protective backing from the right side of the antenna
label and secure the antenna cables in place.
979A
screw opening
Antenna label
955B
955B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
