GE Dash 4000 Service Manual

Field replaceable units: Remove or replace handle assembly
2000966-542D Dash 3000/4000/5000 7-13
 Carefully disconnect the antennas using a pen tip, small
screwdriver, or needle nose pliers.
 Place the wireless card in a safe place.
 Remove the handle from the main unit, carefully removing
the antenna cables from the housing holes.

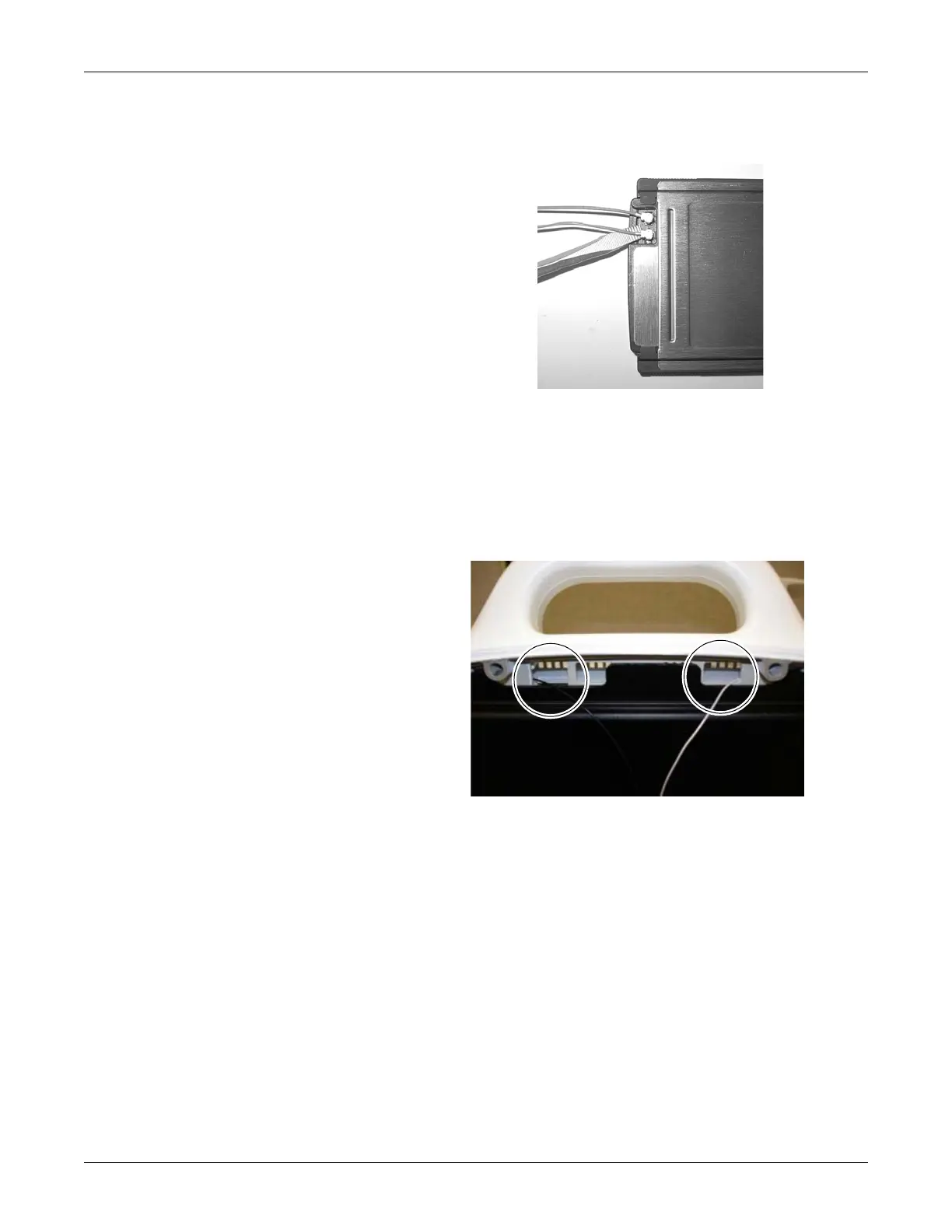

d. To replace the handle, route the antenna cables through the
housing holes as shown. Apply adhesive tape to temporarily hold
the handle into position.
e. Gather the antenna cables together in the middle of the unit,
then do the following:
 Make sure that the cables are lying flat and are not twisted
around each other.
 Provide enough slack in the cables to allow the handle to be
removed if future repairs are required.
 Remove the protective backing from the short antenna label
and position the label over the untwisted antenna cables as
shown.
942A
954B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
