GE Dash 4000 Service Manual

Field replaceable units: Replace main unit parts
7-36 Dash 3000/4000/5000 2000966-542D

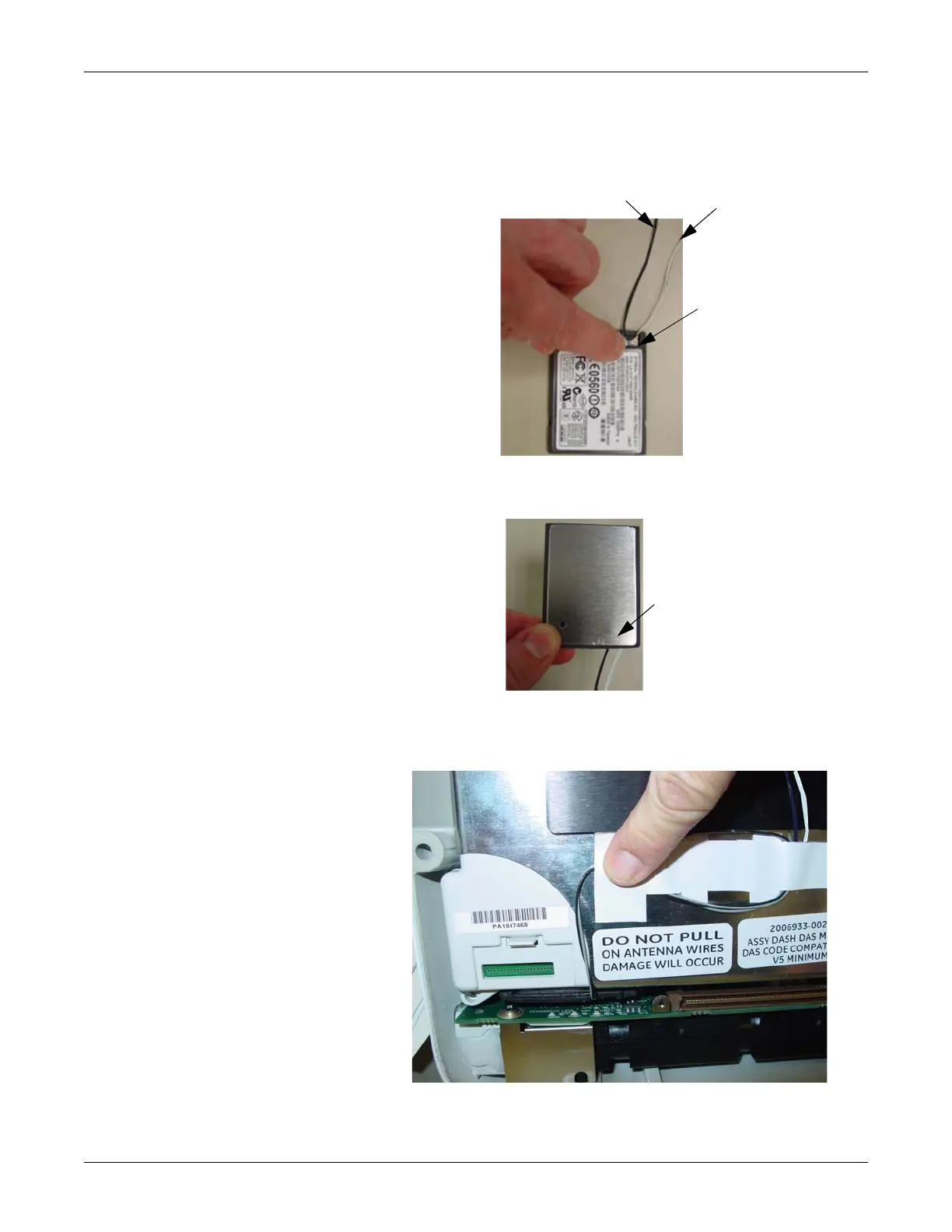

6. Reconnect the antennas connectors to the replacement wireless card.
The black antenna cable connects to the connector on the left and the
grey antenna cable on the right.
7. Reinsert the wireless card into the PC card bracket.
8. Re-secure the antenna cables underneath the antenna label as
shown.
Black antenna cable (left)
Grey antenna cable
(right)
Antenna connectors
959C
975B
Insert
wireless card
with antenna
connectors
facing down
962B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
