GE Dash 4000 Service Manual

Field replaceable units: Replace main unit parts
2000966-542D Dash 3000/4000/5000 7-47

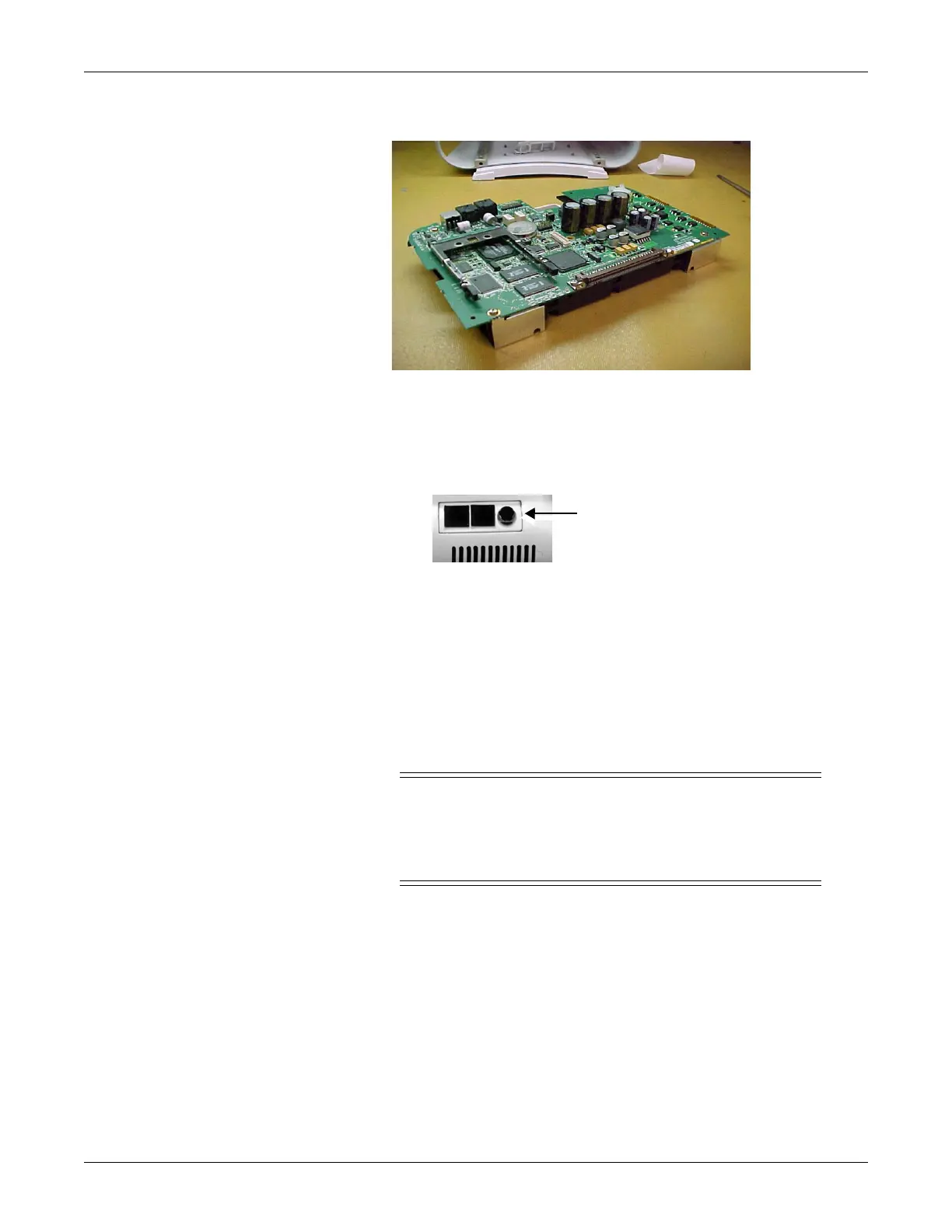

9. Carefully pull the CPU/battery housing assembly from the unit.
10. Remove the plastic connector panel from the three connectors at the
back of the CPU/battery housing assembly. Install this panel on the
new CPU/battery housing assembly before you slide the new
assembly into the rear housing.
11. Install the new assembly in the unit.
NOTE
When securing the thumb screw on the writer flex, first finger-
tighten the thumb screw. Then, use a flat-head screw driver to
tighten the screw an additional 1/4 turn.
12. If present, install the wireless card into the new CPU/battery
housing assembly.
CAUTION
Do not pull on the 802.11a/b/g antennas or use force
when connecting to the wireless card. Handle the
antennas and connectors carefully as they can easily be
damaged.
547A
572A
plastic connector panel

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
