GE Dash 4000 Service Manual

Equipment overview: Components
2000966-542D Dash 3000/4000/5000 2-3

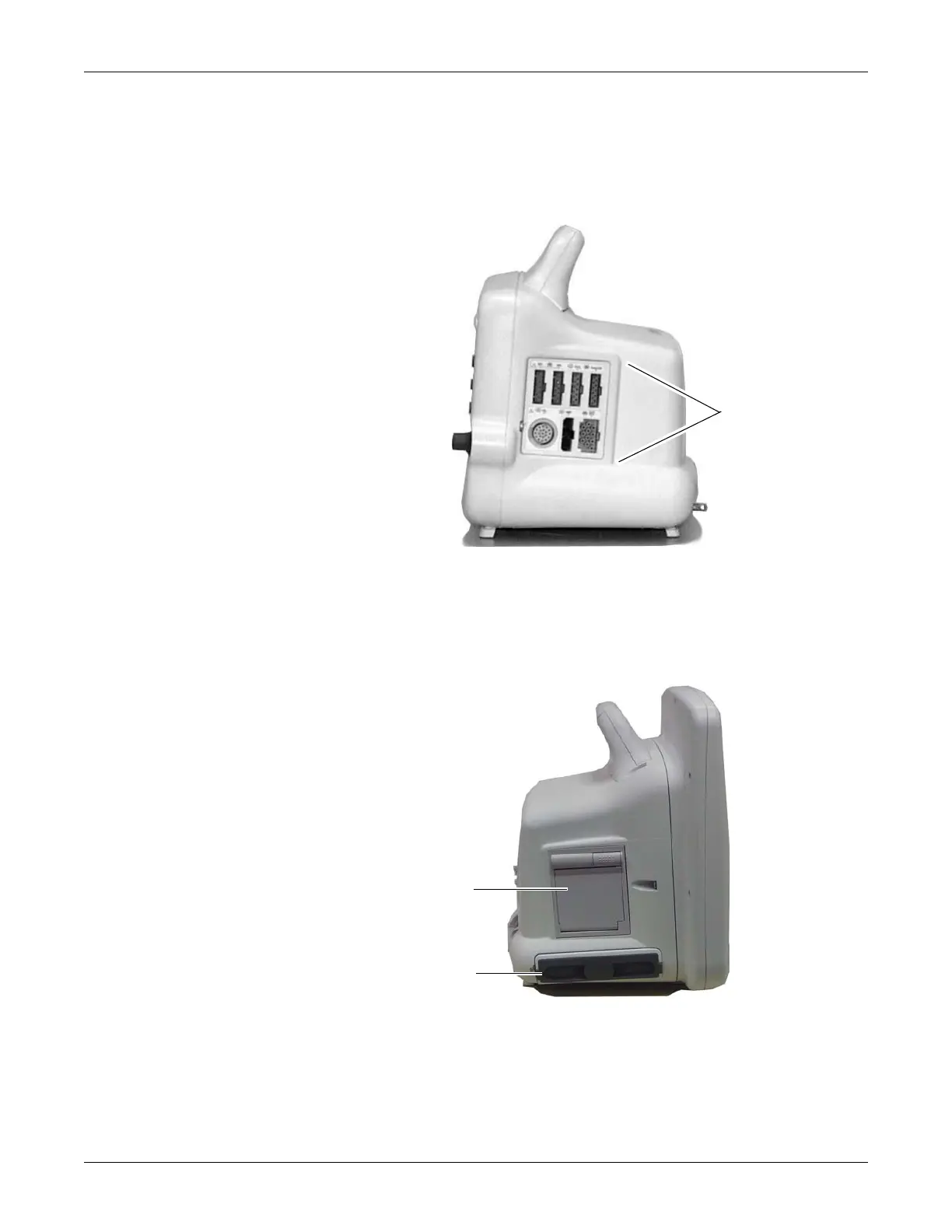

Right side view
All of the patient cable connectors are located on the right side of the
patient monitor. A Trim Knob™ control provides single control
operation of virtually all patient monitor functions.
Left side view
On the left of the patient monitor, you can find the built-in writer and the
battery compartment.
Patient cable
connectors
002A
925B
A
B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
