GE Dash 4000 Service Manual

Equipment overview: Components
2-4 Dash 3000/4000/5000 2000966-542D

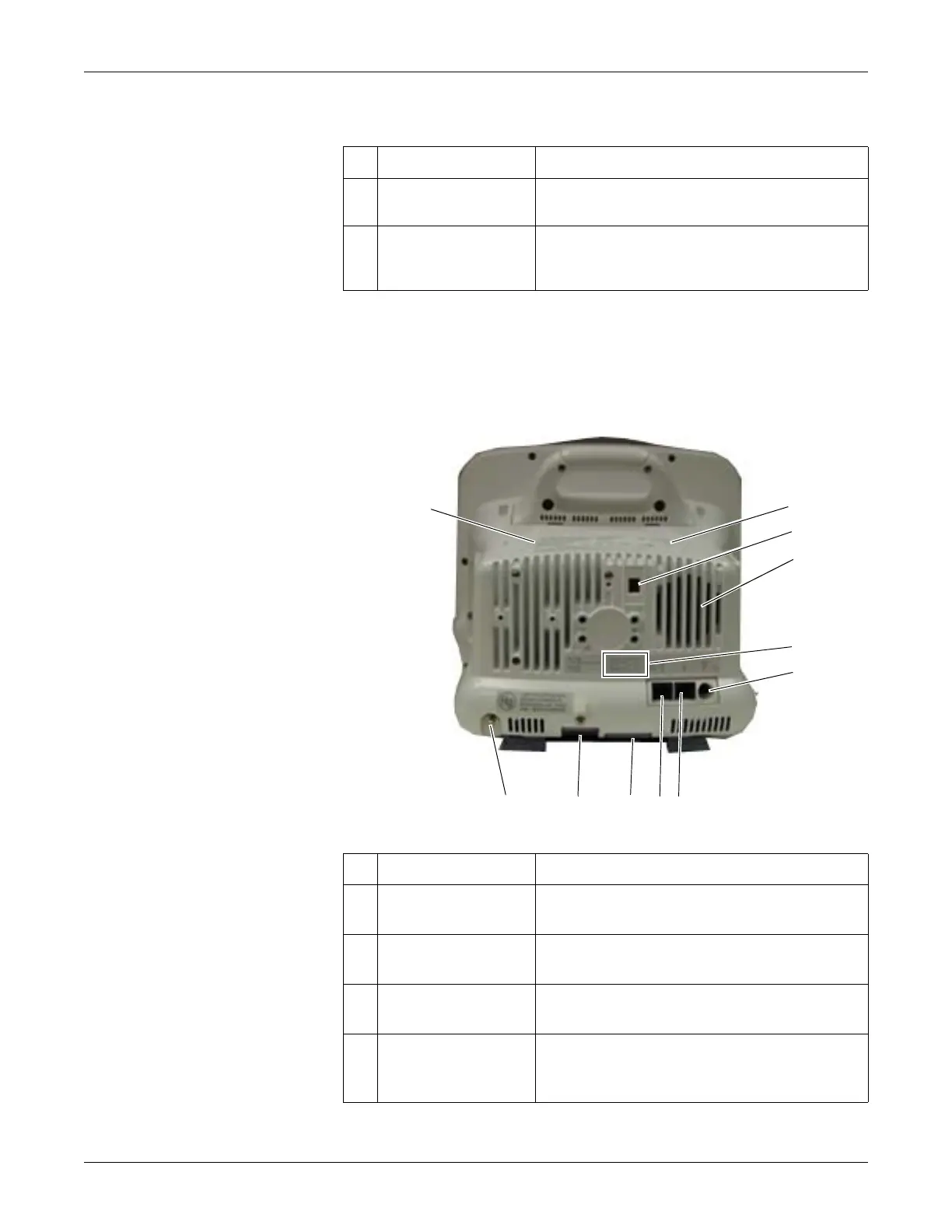

Back view
All ports for equipment and network are on the back of the patient
monitor.
Name Description
A
Built-in writer
(optional)
The built-in, 4 channel writer is located in the
center of the left side of the monitor.
B
Battery compartment The battery packs are located in this compartment.
The battery compartment may be a single plastic
door or two silicone doors.
Name Description
A
wireless transmitter label Identifies monitors that contain an internal wireless
transmitter for network communication.
B
line voltage selector This selector is factory set to match the line voltage
rating for your country.
C
speaker The internal speaker provides sound for audible alarms.
For better sound quality do not block speaker.
D
voltage and current
requirements
Identifies the voltage and electrical current
requirements for proper and safe operation of this
monitor.
004B
A
B
C
D
E
JIHGF
K

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
