8

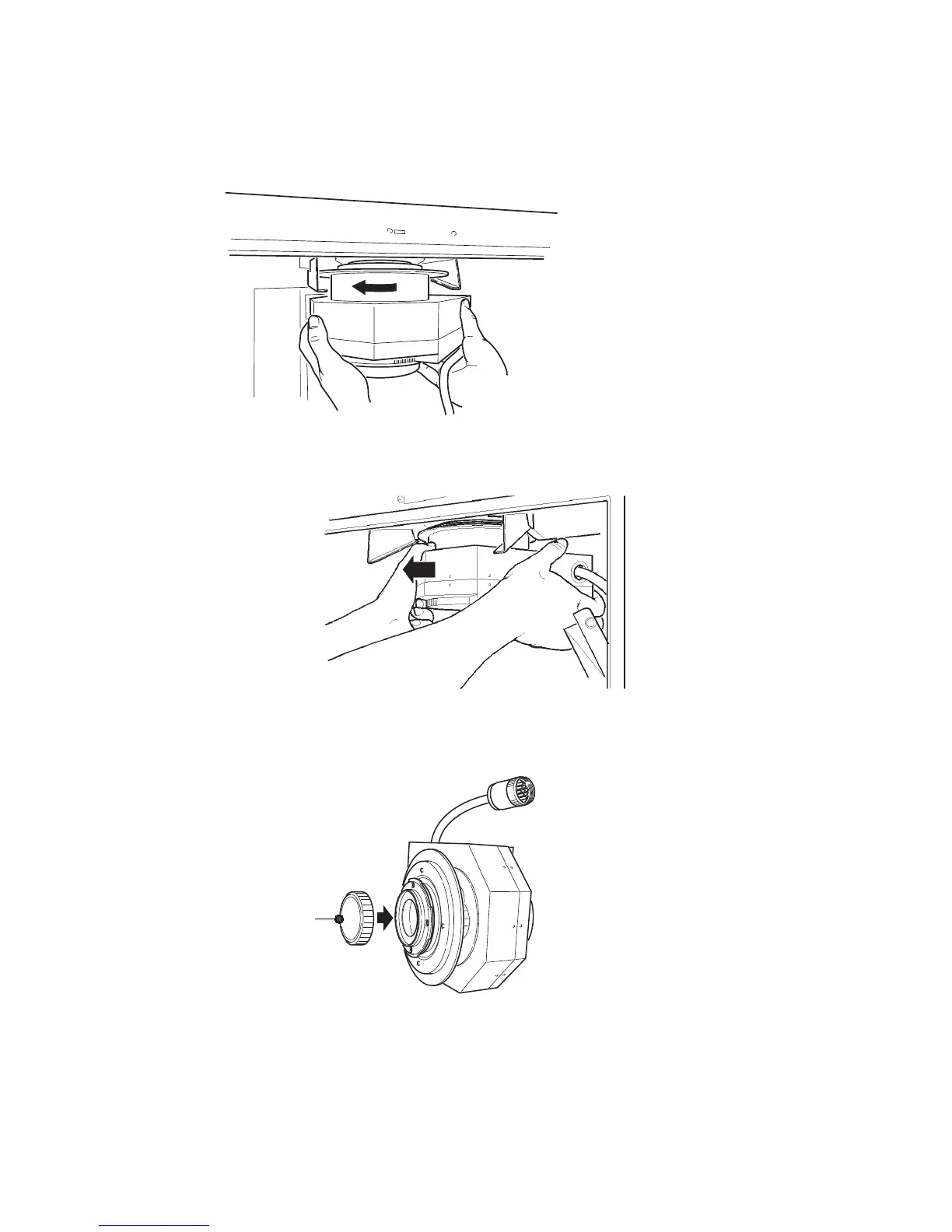

Rotate the lens to the left by 45 degrees.
The lens comes off downward.
Note:
Hold the lens with both hands so as to prevent the lens guide from being damaged.
9
Take out the lens slowly along the lens guide toward you.
10
Place the end cap on.
End cap
ImageQuant LAS 4000 User Manual 28-9607-42 AB 21
3 Exchanging accessory parts
3.2 Installing or exchanging the lens
3.2.1 Removing the LAS High Sens. lens
