Set Up Docking Cart
LOGIQ e – Basic Service Manual 11-33
5461614-100 English Rev. 6
Install Color Printer Shelf to Docking Cart
Tools
• Common Phillips screwdrivers
• Allen/Unbraco/Torx wrench
Preparation
• Shut down the system and switch off the main breaker.

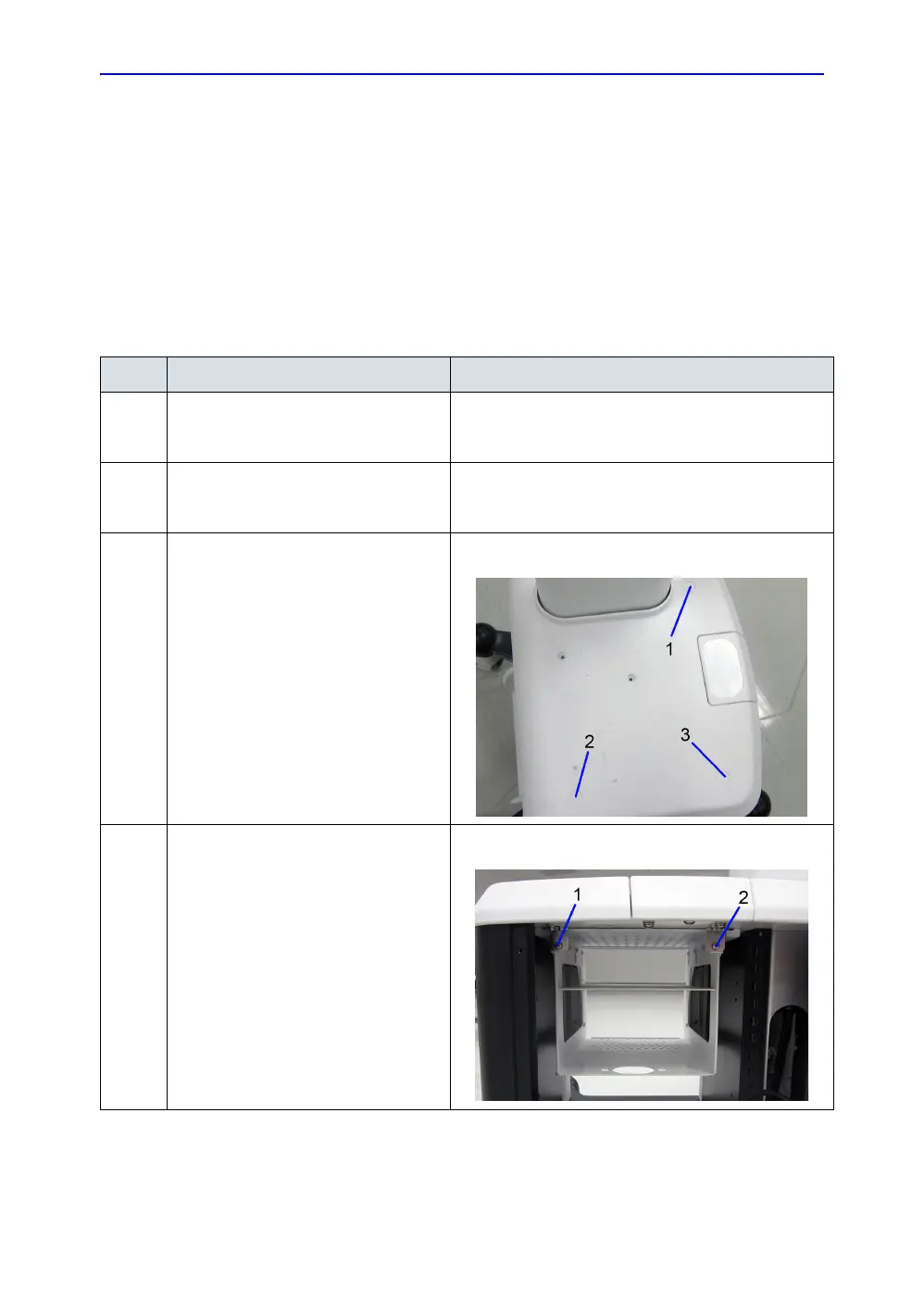

Table 11-13: Mounting Procedure for Color Printer Shelf Assy
No. Steps Corresponding Graphic
1. Remove the rear panel. See ‘Rear
Panel Assy (Part No. 5422978)’ on
page 12-8 for more information.
2. Remove the storage rack. See ‘Storage
Rack (Part No. 5219976-2)’ on
page 12-7 for more information.
3. Remove the 3 screw pads and unscrew
the 3 screws on the cabinet top cover.
4. Unscrew the 2 screws at the back of the
cabinet.
To Next Page
