G100 Instruction Manual

16 994-0155-1.00-1 GE Information

Bottom Panel

The bottom panel of the G100 provides access to:

10. 4x Serial ports (RS232/485, RJ45, labelled 1-4)

11. 8x Binary Input (DI) connections (16 pin connector)

12. Time synchronization input with IRIG-B TTL input (2 pin connector)

13. Power Supply connection (2 pin connector)

14. Protective Earth (PE) Ground connection (screw)

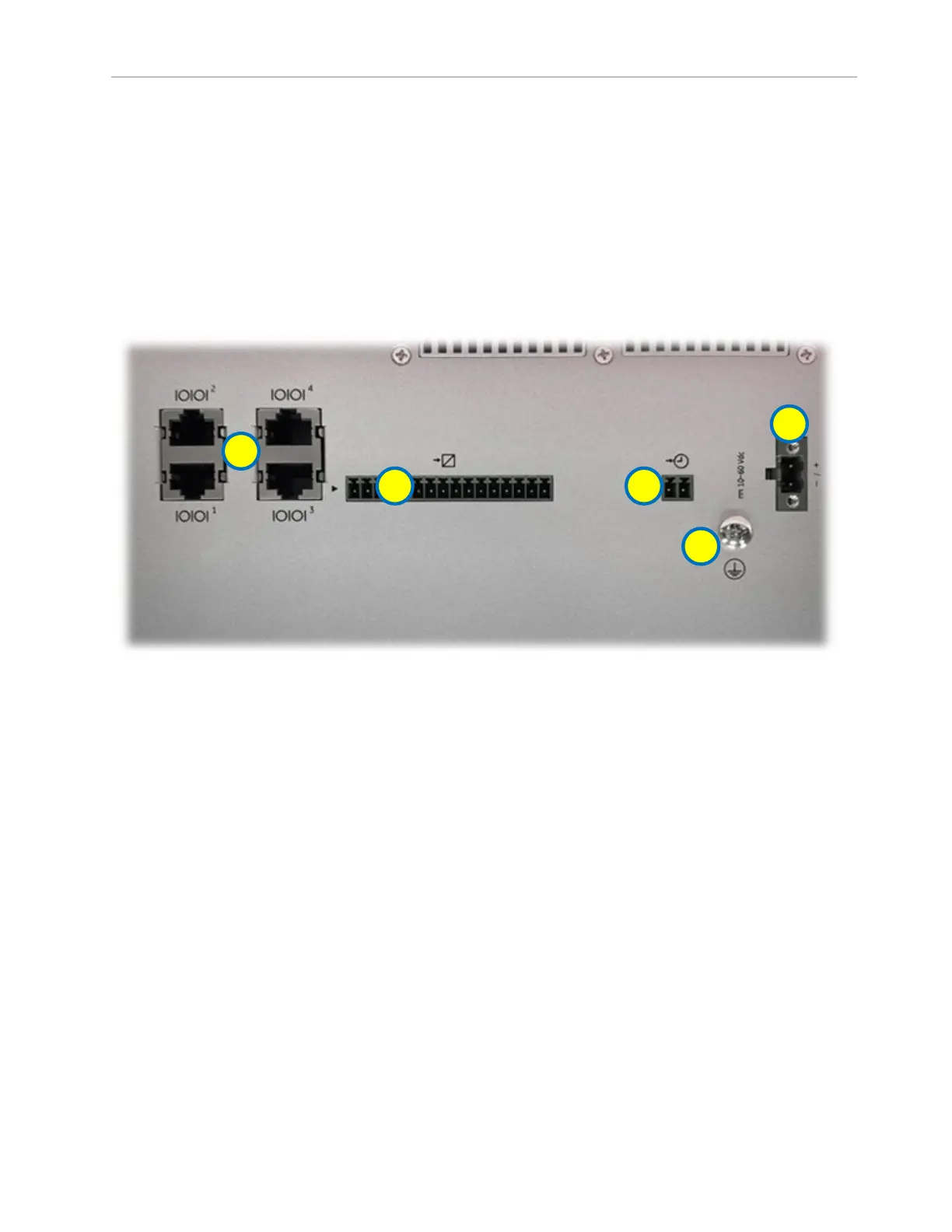

Figure 2: G100 Bottom Panel

11 12
