Front Panel
The front panel of the G100 provides the following LED indications:
15. 8x LED for Binary Input (DI)
16. 4x LED for Binary Output (DO)
17. LED for Analog Input (AI) sampling indication
18. SFP Ethernet (3, 4) link status LED
19. 4x Serial ports status LED
20. IRIG-B Input status LED
21. Power On LED
22. CPU/HW status LED, is ON when the unit operates normally

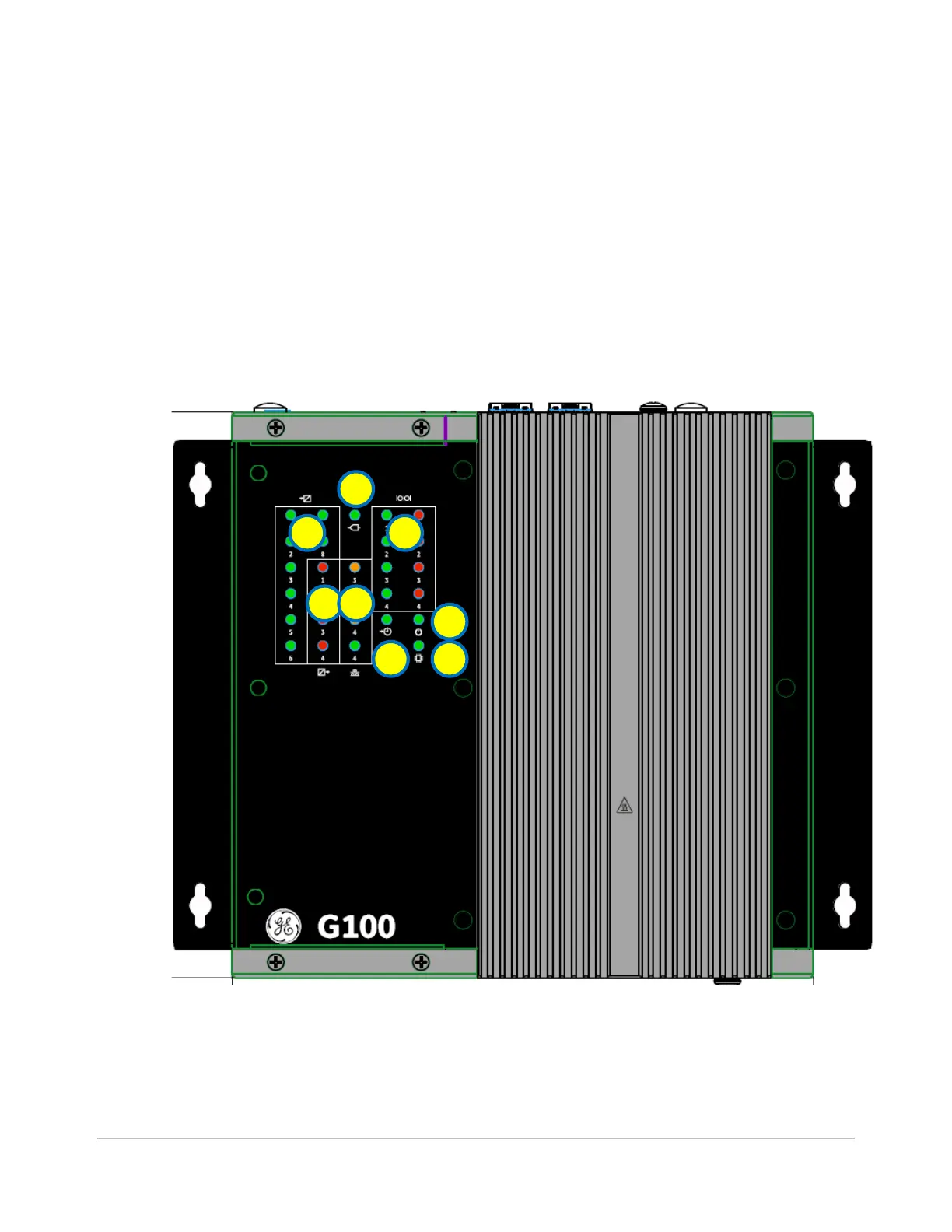

Figure 3: G100 Front Panel
15
17
19
16 18
21
20
22

GE Multilin G100 Specifications

General

Brand	GE
Model	Multilin G100
Category	Gateway
Language	English
