GE Multilin G100 - Binary Outputs (DO): 4

G100 Instruction Manual
GE Information
994-0155-1.00-1
35

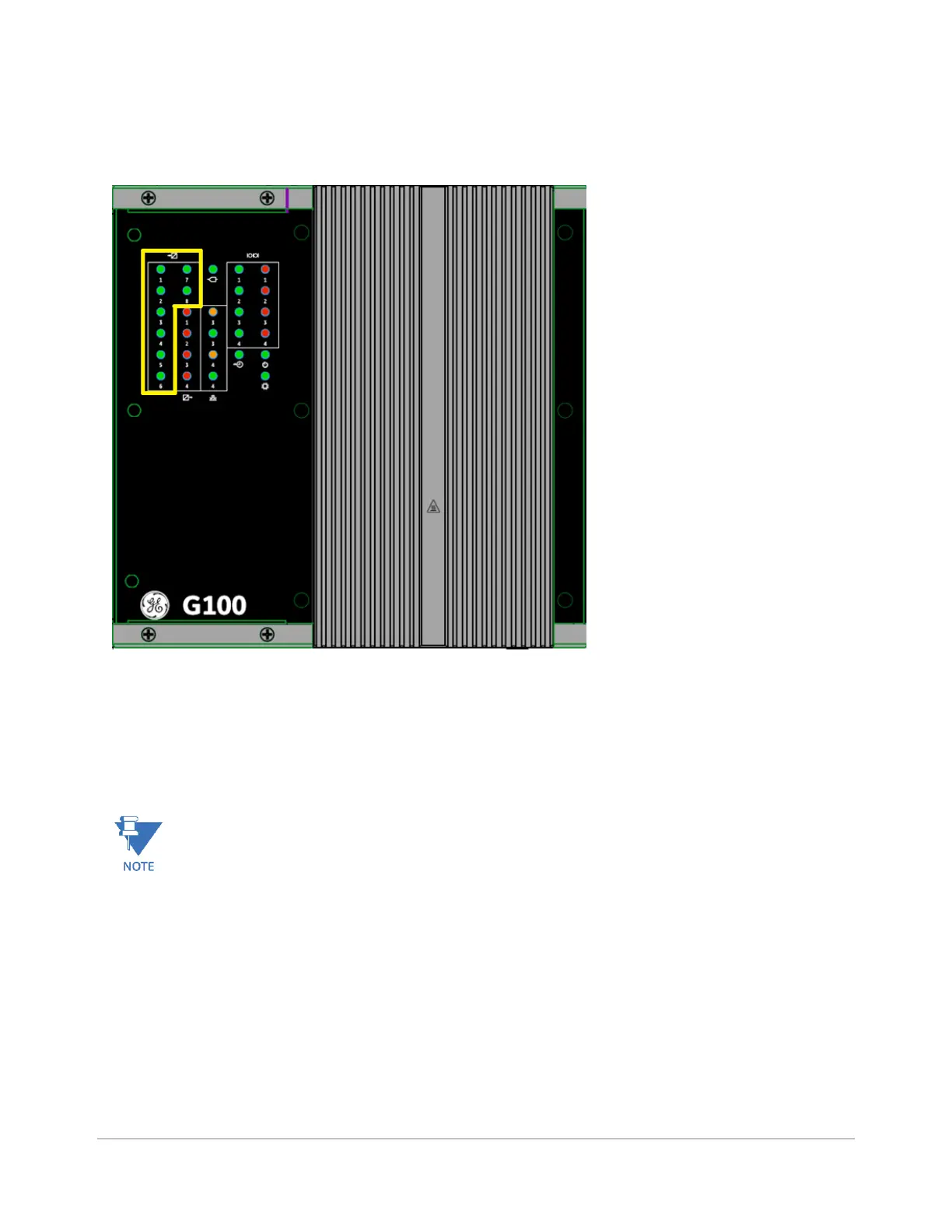

Each DI channel is indicated as “input active” (ON) at runtime via a numbered LED located on the front side of the
G100:
Binary Outputs (DO): 4
Each DO channel is isolated and independent, and provides a N.O. (Normal Open) dry relay single contact, rated
at 10 – 60 VDC / 1A (Max.).
The DO channels are not fused internally.
DO wiring is via a pluggable connector, pitch 3.5mm x 8 pins, located on the top side panel:
