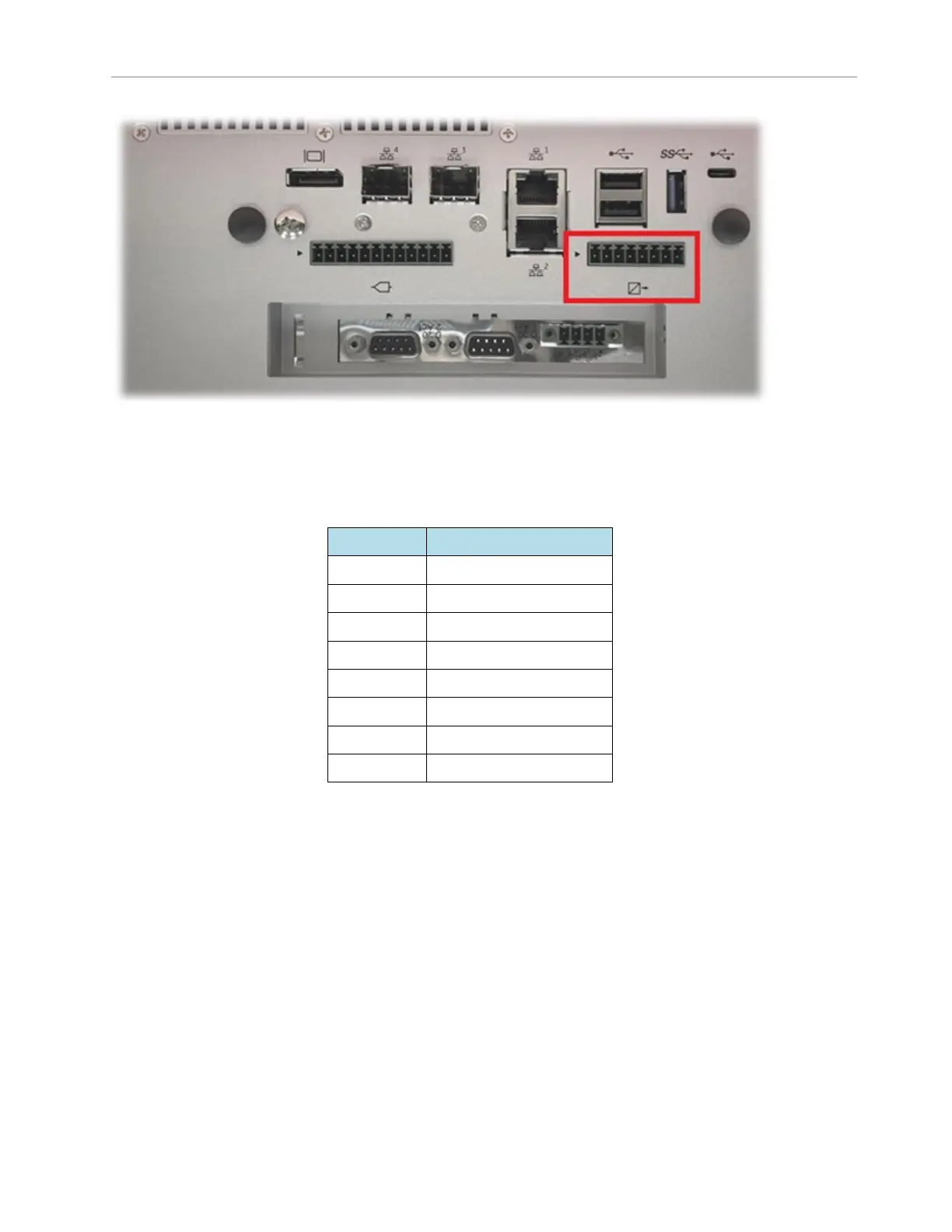

The small arrow on the left indicates PIN 1.
Table 5: GPIO DO connector pin assignments
PIN NO.
DESCRIPTION
1 (arrow)
RELAY1_NO1
2
RELAY1_COM1
3
RELAY2_NO1
4
RELAY2_COM1
5
RELAY3_NO1
6
RELAY3_COM1
7
RELAY4_NO1
8
RELAY4_COM1
Each DO channel is indicated as “active” (ON) at runtime via a numbered LED located on the front side of the
G100:
