GE Multilin G100 - TP and SFP Ethernet Port Details

G100 Instruction Manual
54 994-0155-1.00-1 GE Information

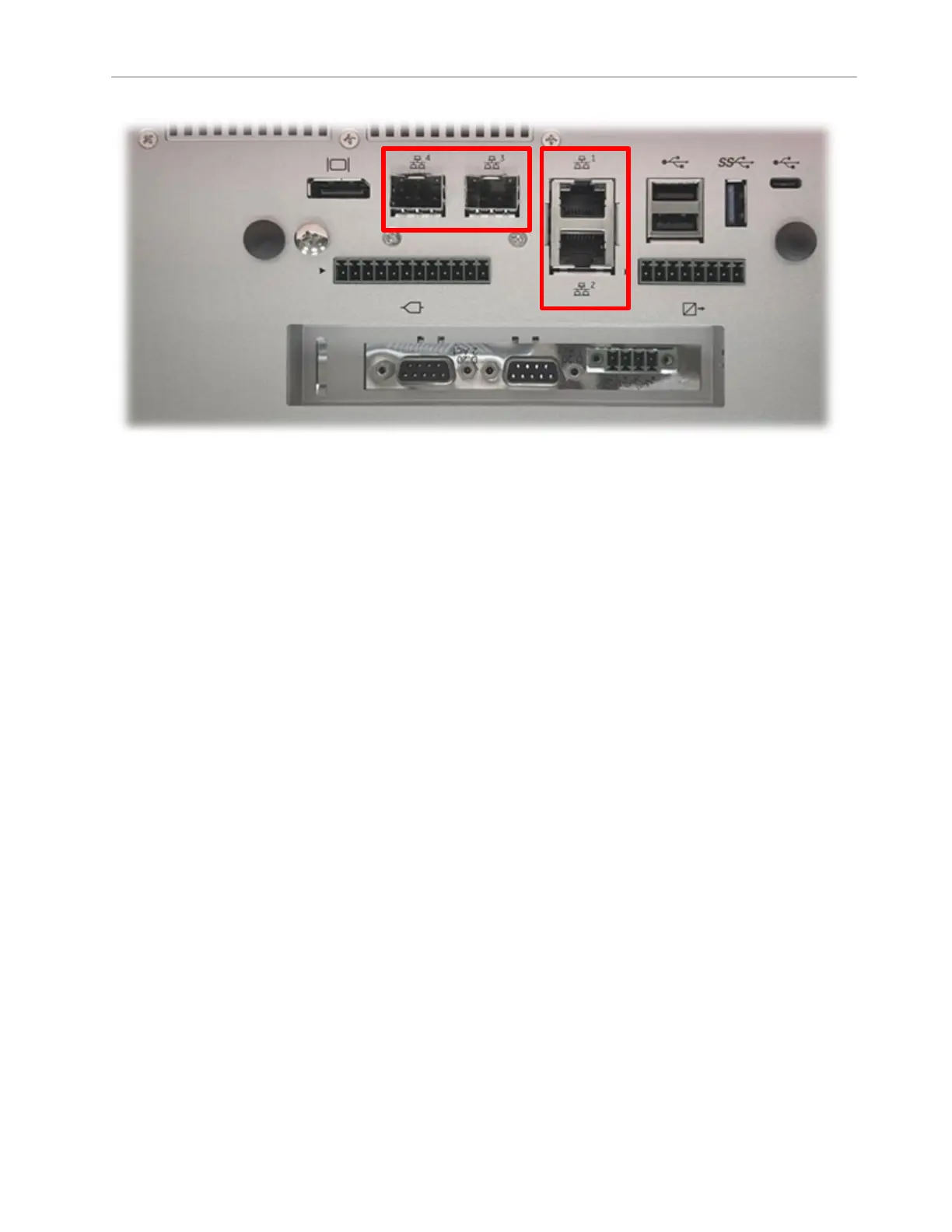

TP Ethernet ports and LED indications (labelled 1, 2)
Ports 1 and 2 are RJ45 Copper (RJ45 10/100/1000BASE-TX) with separate NICs (LAN1/2).
Each RJ45 port has LED indicators inside the RJ45 connector:
• Activity (Green)
• Link (Orange)
Each RJ45 port is isolated to 1.5KV AC / 2.1KV DC
SFP Ethernet ports (labelled 3, 4)
Ports 3 and 4 are SFP with separate NICs (LAN3/4).
Into each slot an SFP module can be inserted.
Each SFP port has LED indicators on the front panel:
• Activity (Green)
• Link (Orange)
