G100 Instruction Manual
48 994-0155-1.00-1 GE Information
D.20 redundant LAN daughter card (GE part#: 540-0209 for D.20C and GE part#: 540-0207 for D.20A,S,K) must
be installed with the corresponding configuration (Redundant Link) in DSAS.
The last D.20 peripheral must be terminated with D.20 terminator (GE part#: 977-0049).

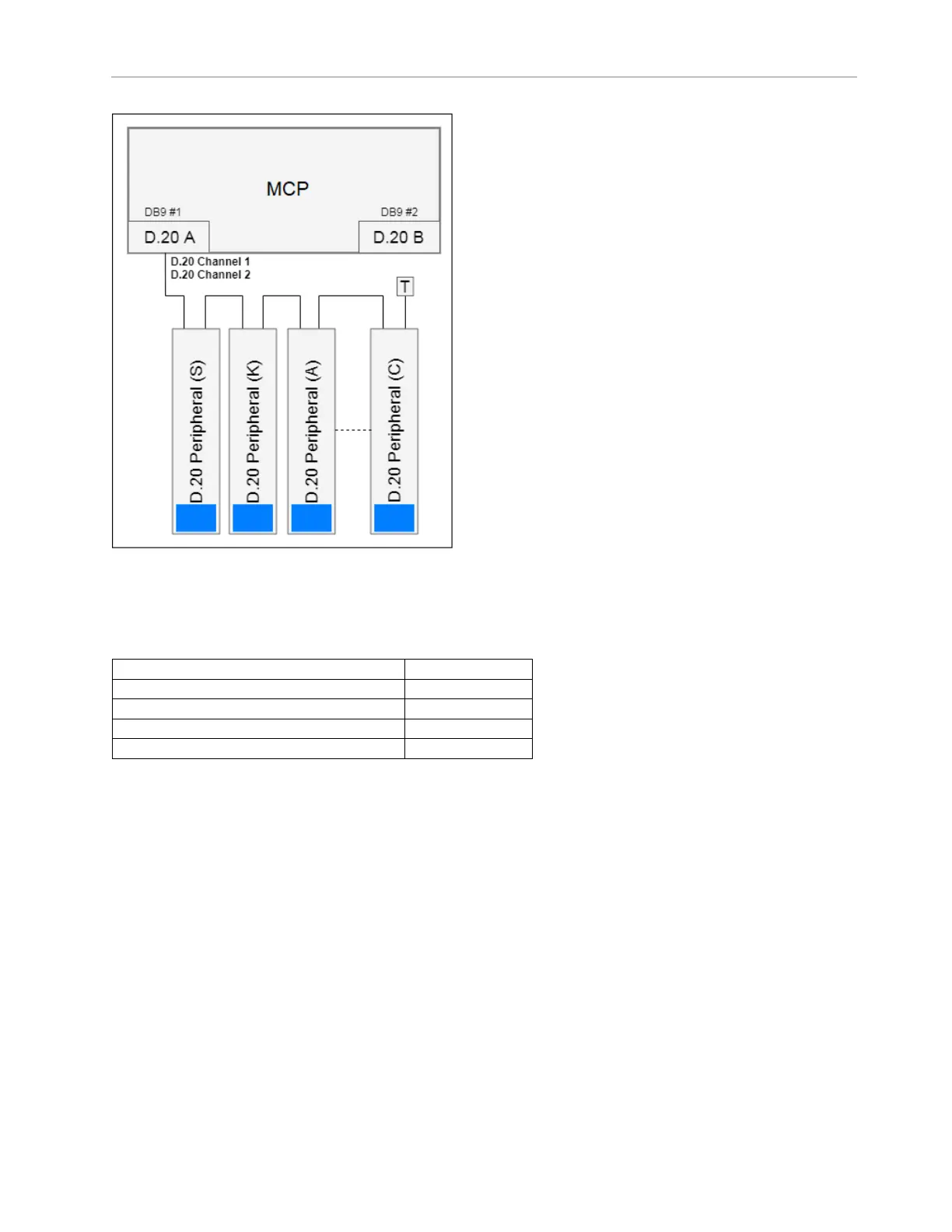

Table 17: Single D.20 link, redundant LAN - Default settings
Function
State
End of Link - D.20 Channel 1
ON
End of Link - D.20 Channel 2
ON
Port B - D.20 Channel 1 (pin 6/7)
OFF
Port B - D.20 Channel 2 (pin 2/3)
OFF
Redundant D.20 link, redundant LAN
Figure 7: Redundant D.20 link, redundant LAN - Topology
