G100 Instruction Manual
USB ports

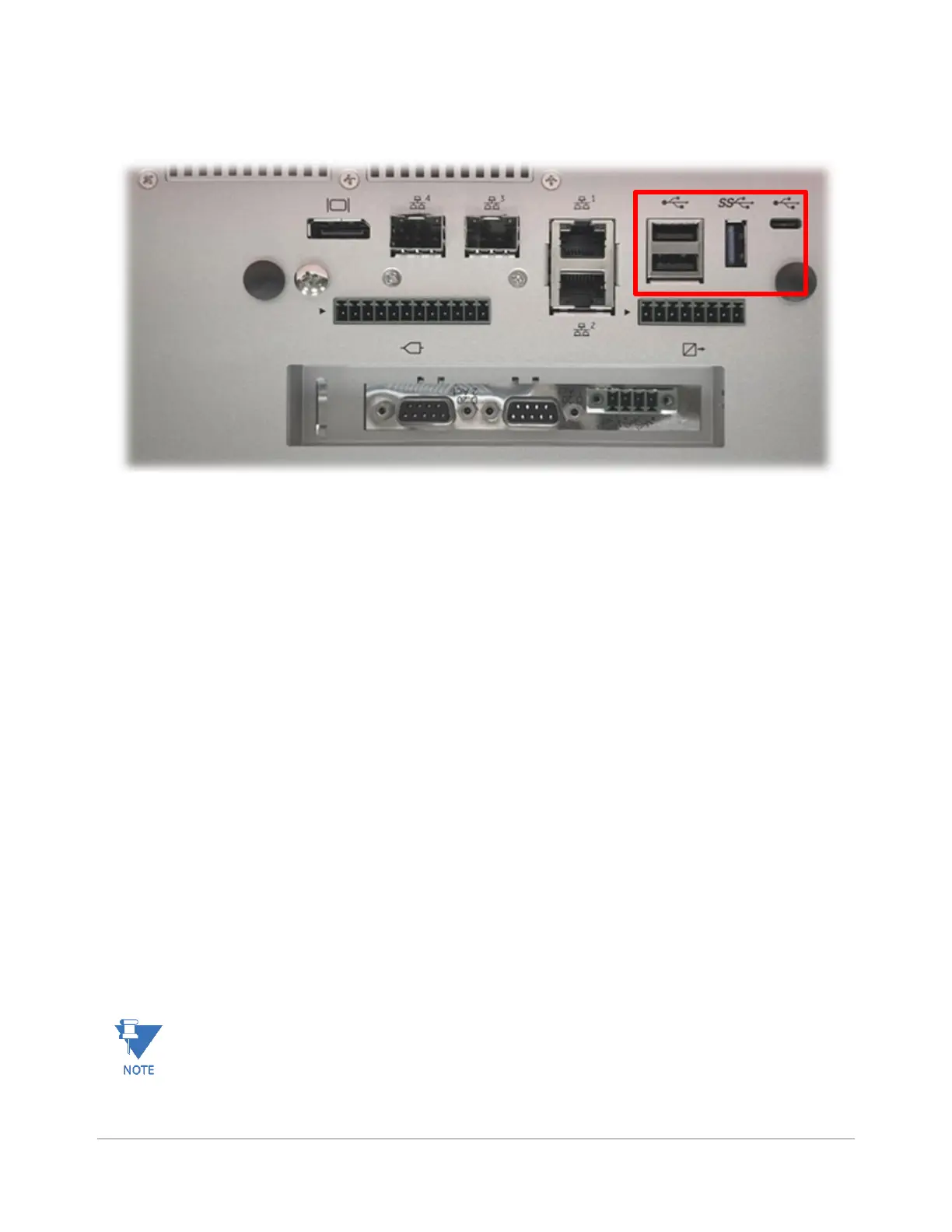

The top panel of the unit provides the following USB ports:
One USB 3.0 type A connector, mainly used to enable maintenance personnel to connect their equipment and
storage devices for software updates.
The USB 3.0 A port is fused internally. For normal operation don’t exceed 0.9 A per connector.
The maximum cable length for USB 3.0 cables is 3m (=118in).
Using longer cables than specified for each port might result in data loss.
Two USB 2.0 Type A connectors. Main purpose of these connectors is to enable installation personnel to
connect Mouse, Keyboard and equivalent equipment for initial configuration of the device.
Each USB 2.0 A connector is fused separately. For normal operation don’t exceed 0.9 A per connector. The
cumulative current draw of all four ports is limited to 1A due to thermal and power budget restrictions.
The maximum cable length for USB 2.0 cables is 3m (=118in).
The USB Type C connector is for future applications, currently not used. Please do not connect external devices
to it.
Internal Buzzer
The G100 has an internal buzzer, which is intended for local and close proximity general purpose usage.
This buzzer has a very low volume and as such is not suitable for critical operators’ notifications.
