Grounding
It is required to connect the G100 chassis to cabinet ground, which then MUST BE CONNECTED TO Building

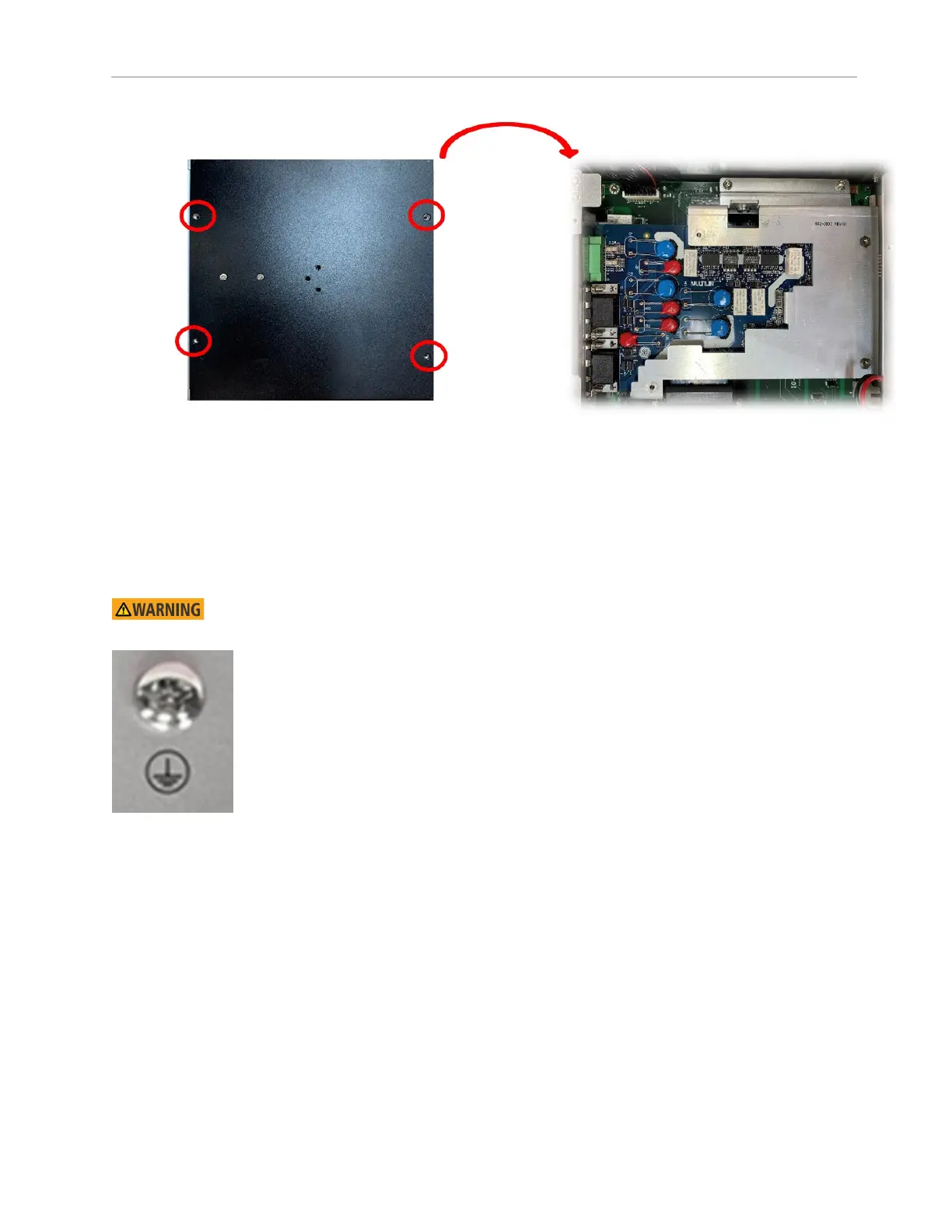

Protective Earth (PE) ground using the ground connection screw located near the G100 power supply connector
on the bottom side panel.
An improperly wired ground connection could place hazardous voltages on accessible metal
parts.
Power Supply
The G100 is intended to be powered by a UL list DC power supply or DC power source, via one 2 Pin DC-IN
connector located on the bottom side panel.
The power input is rated 12/24/48Vdc, 5/2.5/1.25A minimum, Tmax = 70 degree C, and the altitude of operation
= 5000m.
The device has a maximum power consumption of 60 W.
Make sure you connect the “+”and “- wires according to the label adjacent to the connector.
