G100 Instruction Manual
46 994-0155-1.00-1 GE Information

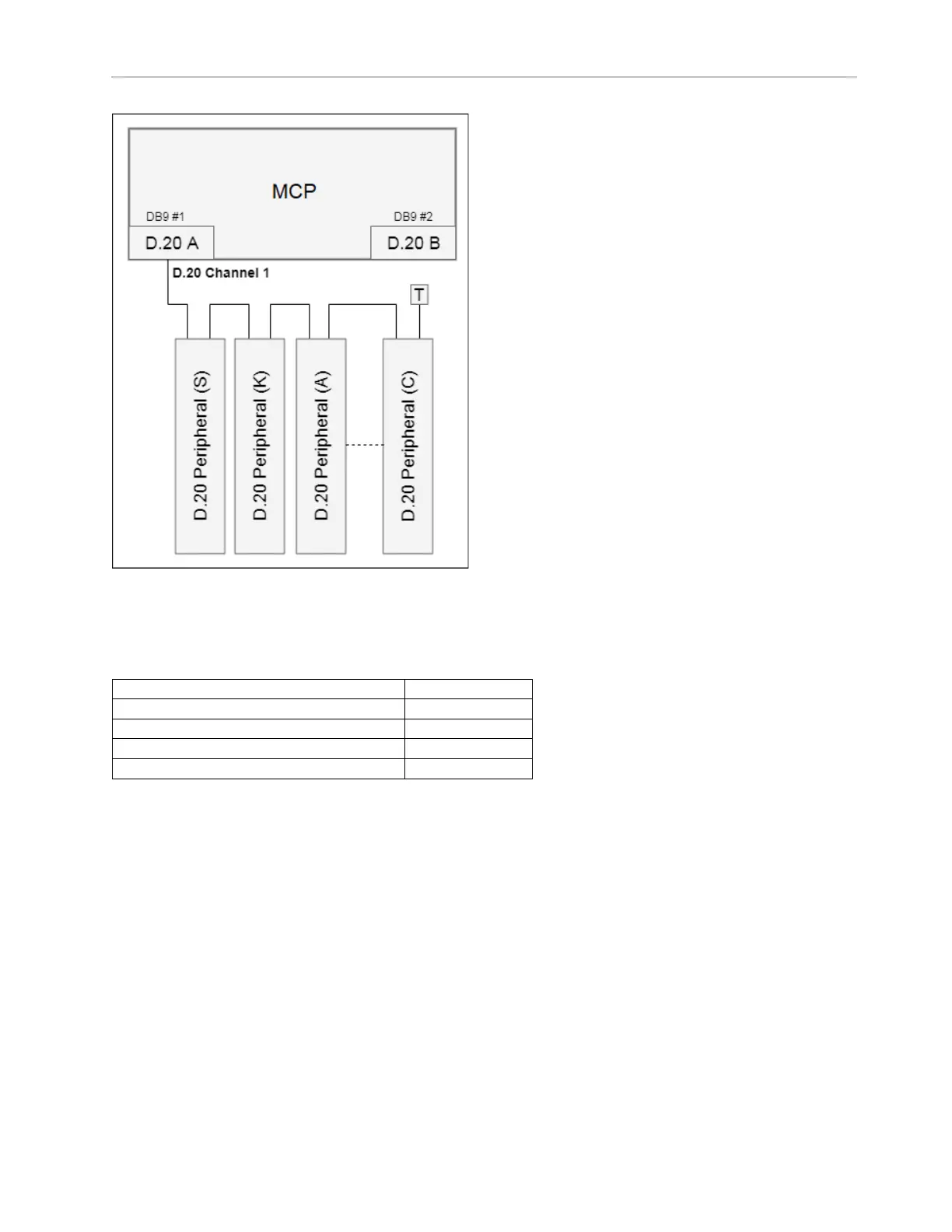

D.20 redundant LAN daughter card can optionally be installed with the corresponding configuration (Single
Link) in DSAS.
The last D.20 peripheral must be terminated with D.20 terminator (GE part#: 977-0049).
Table 15: Single D.20 terminated, Single Link - Default settings
Function
State
End of Link - D.20 Channel 1
ON
End of Link - D.20 Channel 2
ON
Port B - D.20 Channel 1 (pin 6/7)
OFF
Port B - D.20 Channel 2 (pin 2/3)
OFF
Dual D.20 link terminated
Figure 5: Dual D.20 link terminated - Topology
