G100 Instruction Manual
GE Information
994-0155-1.00-1
39

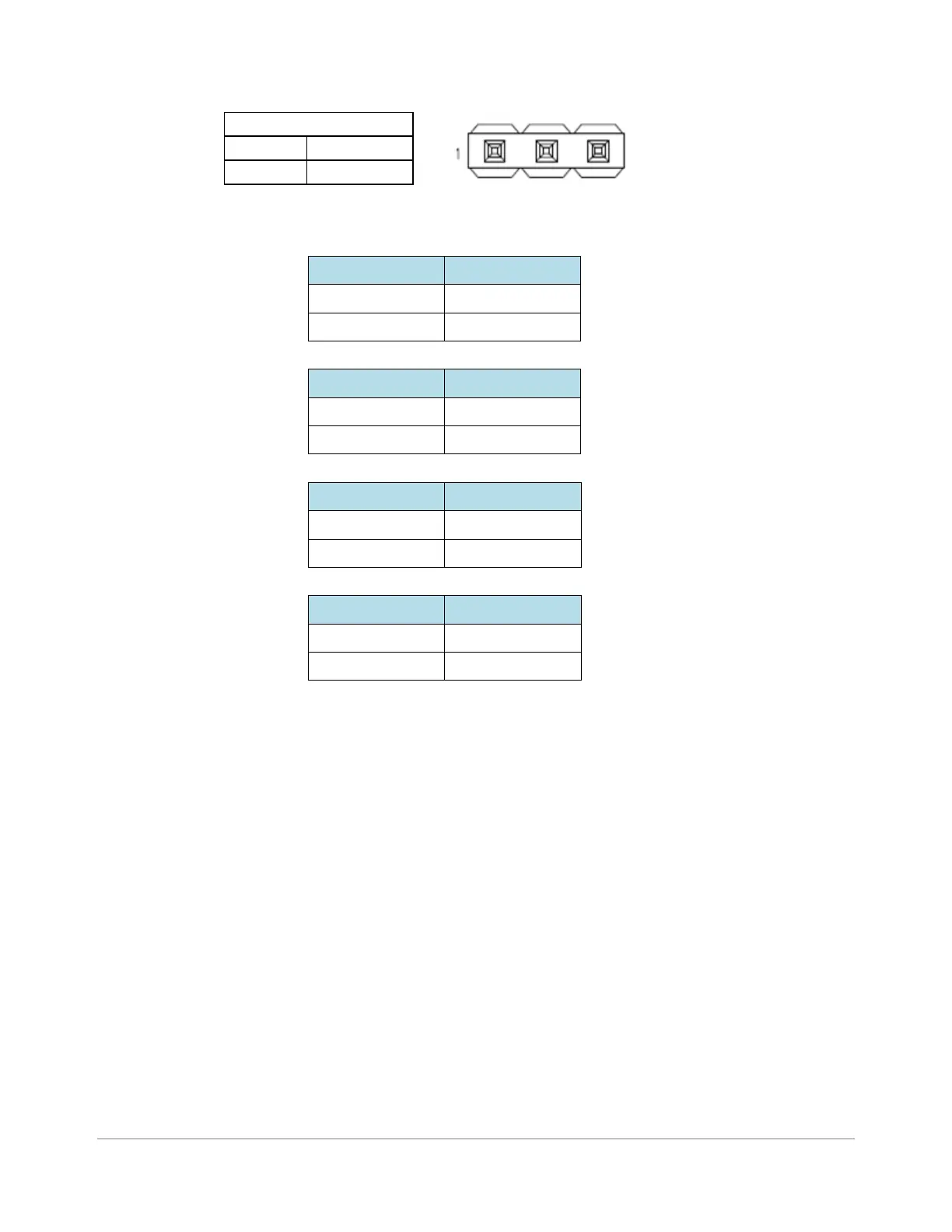

Table 7: GPIO AI Voltage / Current selection jumper
Jumper JAI12
DESCRIPTION
1-2 (Default)
V_IN_CH_1
2-3
I_IN_CH_1
Jumper JAI13
DESCRIPTION
1-2 (Default)
V_IN_CH_2
2-3
I_IN_CH_2
Jumper JAI14
DESCRIPTION
1-2 (Default)
V_IN_CH_3
2-3
I_IN_CH_3
Jumper JAI15
DESCRIPTION
1-2 (Default)
V_IN_CH_4
2-3
I_IN_CH_4
AI sampling is indicated at runtime via one LED (for all AI channels) located on the front side of the G100:
Current
Jumper JAI12~JAI15
Voltage1-2 (Default)
2-3
