6.5 Topology processing
The following scenarios demonstrate how the dynamic topology processing works and
accommodates anomalies and discrepancies in the scheme.
6.5.1 Single bar or double bus with bus sectionaliser
P0873ENa
Bus Section Closed
Isolator Closed
Isolator Closed
CB Closed
CB Closed
Zone 1 = CT1 + CT2
Zone 1 = BB1 + BB2
Check Zone = CT1 + CT2

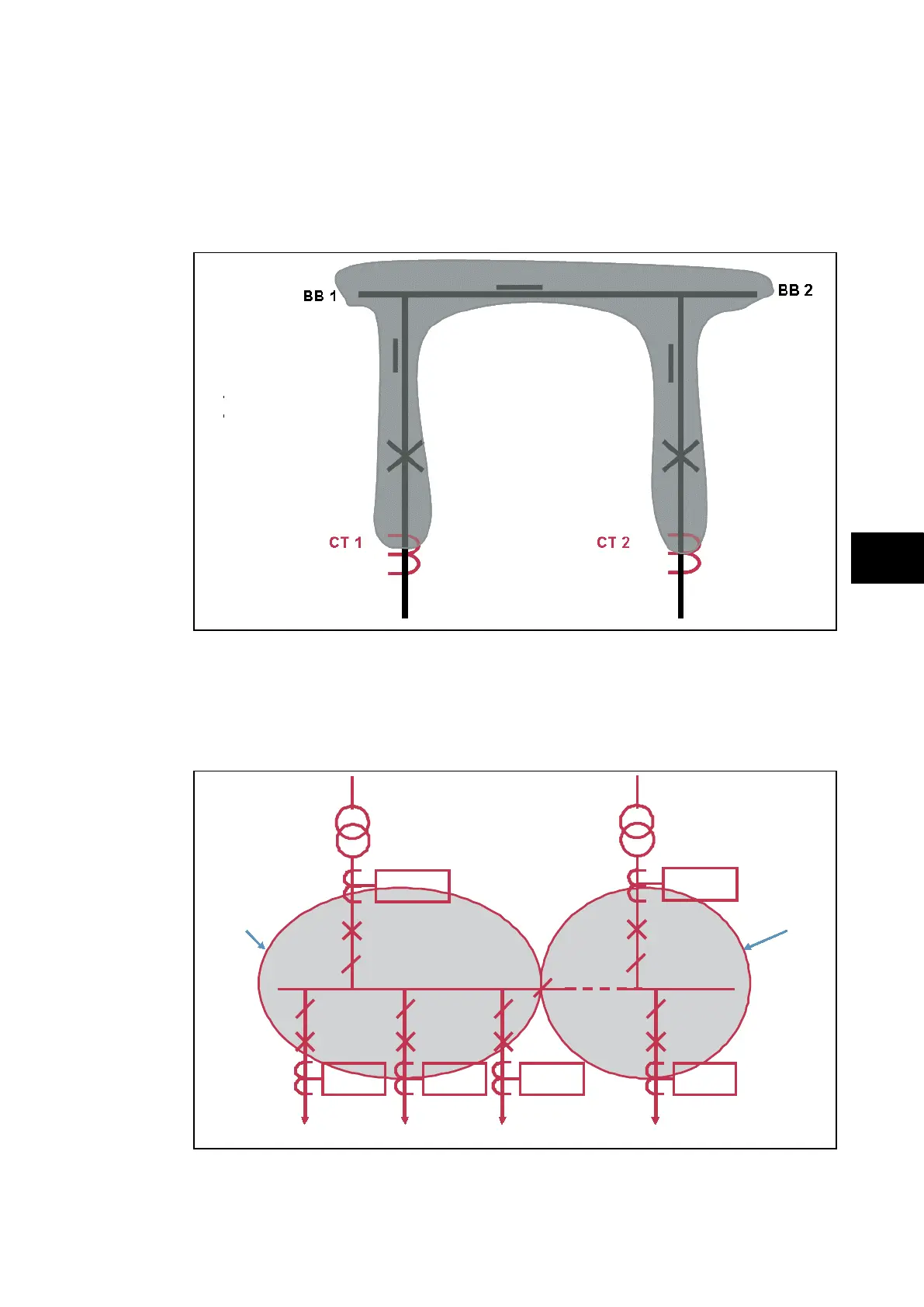

FIGURE 13: BUS SECTION CLOSED
A zone is defined from a CT to an other CT or an open electrical element (coupler CB or
isolator).
As all the breakers and isolators are closed there is only one zone including BB1 and BB2.
P742/3
P742/3
P742/3
P742/3
P742/3
P742/3
P742/3
P742/3
P742/3
P742/3
P742/3
n+ 1
BB1
BB2
Zone 1 Zone 2
P742/3
n+ 1
BB1
BB2
Zone 1 Zone 2
P0874ENa
FIGURE 14: BUS SECTION OPEN
