The replacement PCB should be carefully slid into the appropriate slot, ensuring that it is
pushed fully back on to the rear terminal blocks.
Refit the front panel using the reverse procedure to that given in section. After refitting and
closing the access covers on size 60TE/80TE cases, press at the location of the
hinge-assistance T-pieces so that they click back into the front panel moulding.
Once the relay has been reassembled after repair, it should be recommissioned in
accordance with the instructions in sections 1 to 8 inclusive of the commissioning and
maintenance section P74x/EN CM.
E1
C1
SERIAL No.
1
ZN0017
E
P3760ENa

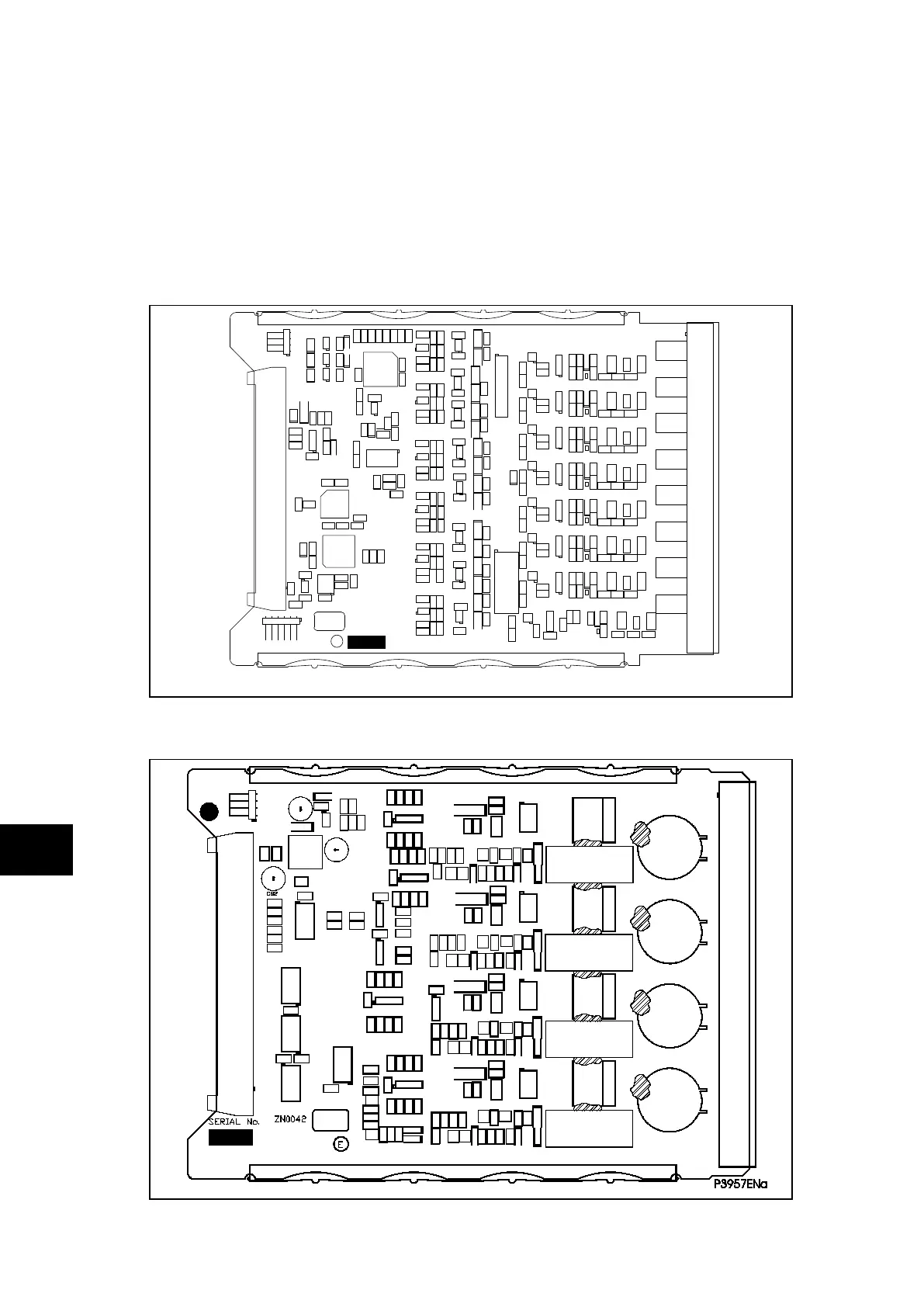

FIGURE 12: TYPICAL OPTO BOARD
FIGURE 13: TYPICAL HIGH BREAK RELAY BOARD
