IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
Chapter 4 - General Procedures and Functional Checks 4-25
PRELIMINARY
NOTE: For the Sony small-format printers, you will see an incomplete Test Page printed out. This is normal.
4-3-9-3 ECG Checks
The system automatically detects the ECG module once connected. The indication for the user will be
displayed in the Peripherals status area.

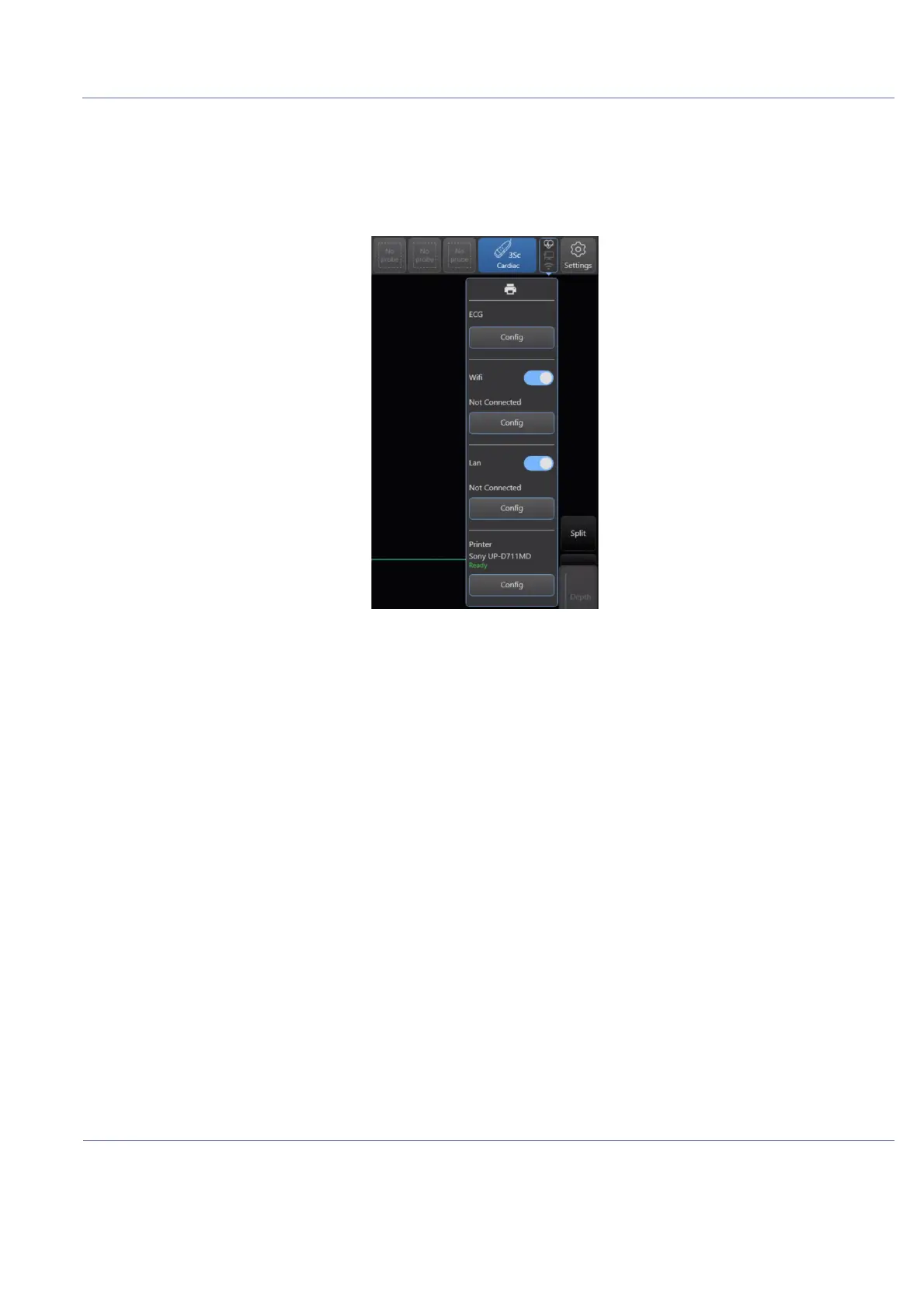

Figure 4-16 Peripheral Status Area
In order to check the functionality of the ECG device, the ECG leads need to be connected to person
body or to an ECG simulator.
