8-142 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-7-7 PCIe Cable Replacement Procedure
8-7-7-1 Tools
Appropriate Phillips screwdriver.
8-7-7-2 Time Required
10 min
8-7-7-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-7-7-4 PCIe Cable Removal Procedure
1.) Remove all accessories.
2.) Remove the following covers: Lower Front eTower, Left side eTower, and Right Side eTower.
3.) Remove the BE module.
4.) Disconnect one side of the PCIe cable from the BIB board and the other side from the BE module.
5.) Remove the PCIe cable.
Refer to Table 9-14 on page 9-14.
• Accessories - Replacement Procedures
• Lower Front eTower Cover Removal Procedure
• Left Side eTower Cover Removal Procedure
• Right Side eTower Cover Removal Procedure
• BE Module Removal Procedure

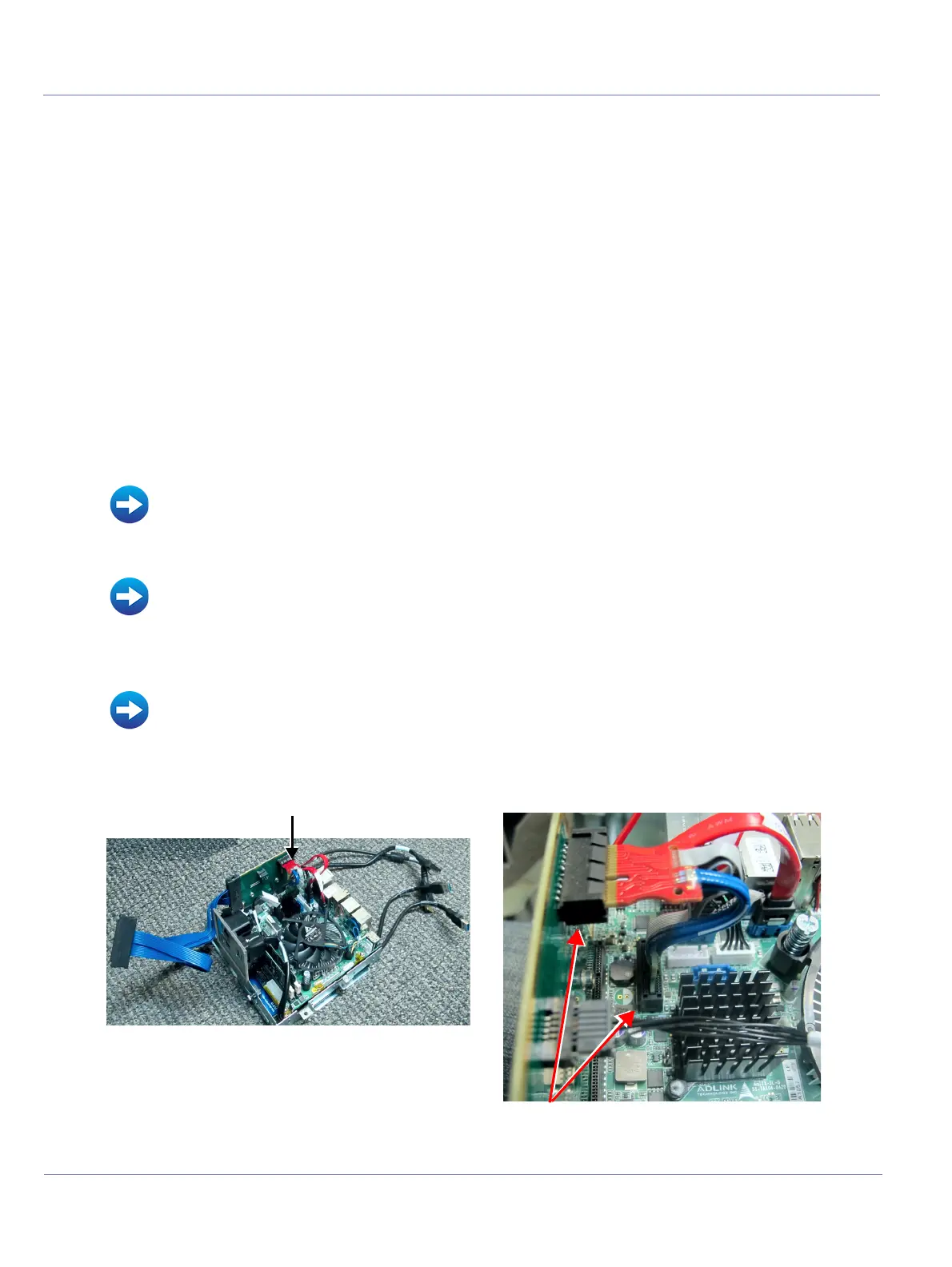

Figure 8-144 Disconnecting PCIe Cable
PCIe cable connectors
PCIe cable location
