IRECTION 5771498-100, REVISION 5 VENUE™ SERVICE MANUAL
Chapter 5 - Venue™Components and Function (Theory) 5-11
PRELIMINARY
Section 5-6
Cockpit (Monitor) Module
5-6-1 General
The cockpit (monitor) supports the following operating systems: Windows 10.IoT 64 bit.
The cockpit (monitor) module contains the following elements:
• Four probe holders and gel cup holder
• Power ON/OFF touch button
• SLEEP mode indicator
• AC Power LED Indicator
• Speaker
• Auxiliary display
• Mechanical Interface to Arm module
• Light Sensors (x2)
• LCD display 19" 5:4 1280x1024 pixels
• Touch module - multi touch surface.
5-6-1-1 Probe Holders

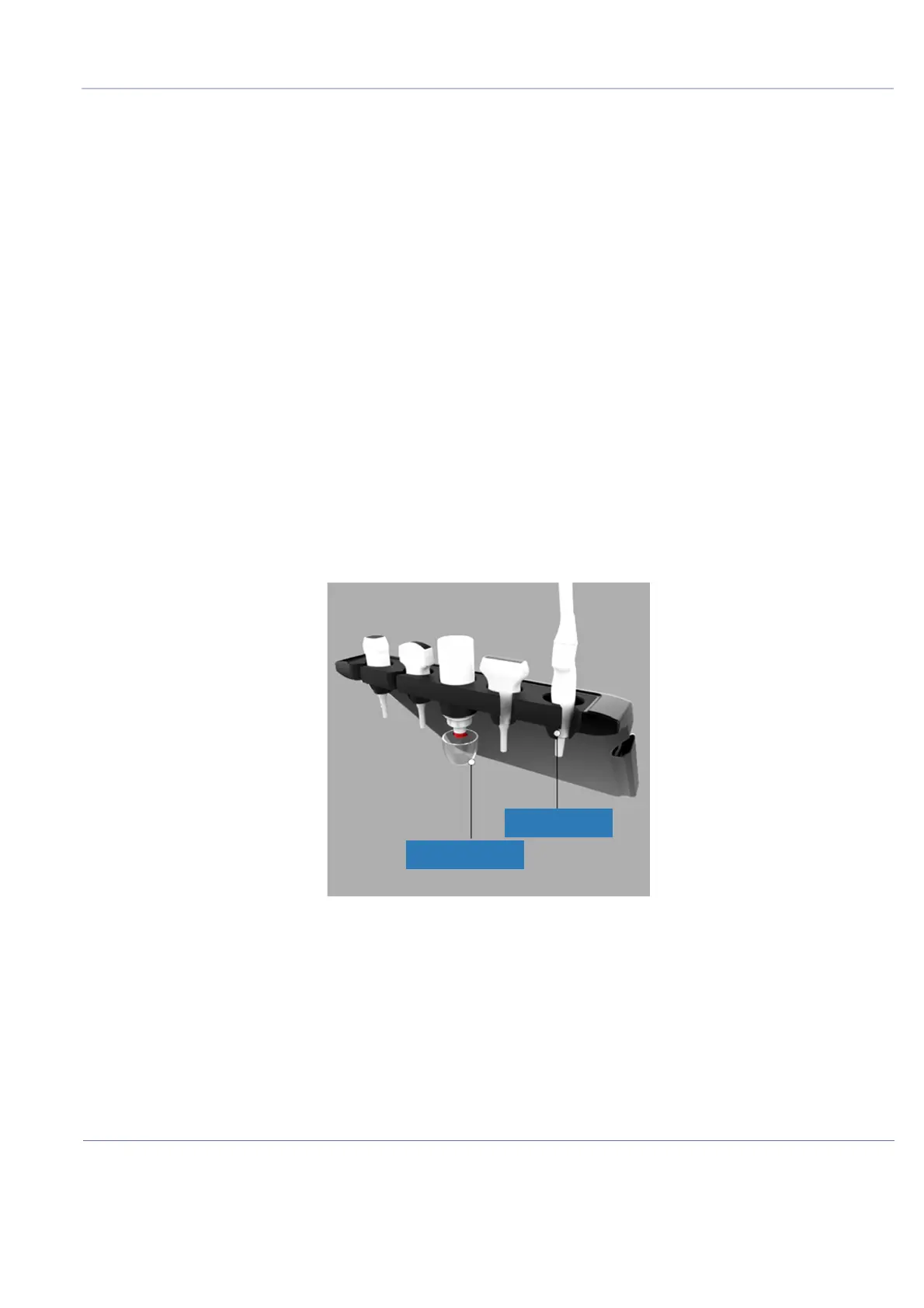

The cockpit (monitor) contains four probe holders and one Gel Cup holder.
Probe Holder
Gel Cup Holder
