8-2-2 Power Cable Holder Replacement Procedure
8-2-2-1 Tools
None
8-2-2-2 Time Required
5 min
8-2-2-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-2-2-4 Power Cable Holder Removal Procedure
1) Move the Power Cable Holder to the center of the Halo Handle and remove the Power Cable Holder
by pushing it upwards.
8-2-2-5 Power Cable Holder Installation Procedure
1.) Install the new Power Cable Holder.
Refer to Table 9-18 on page 9-17.

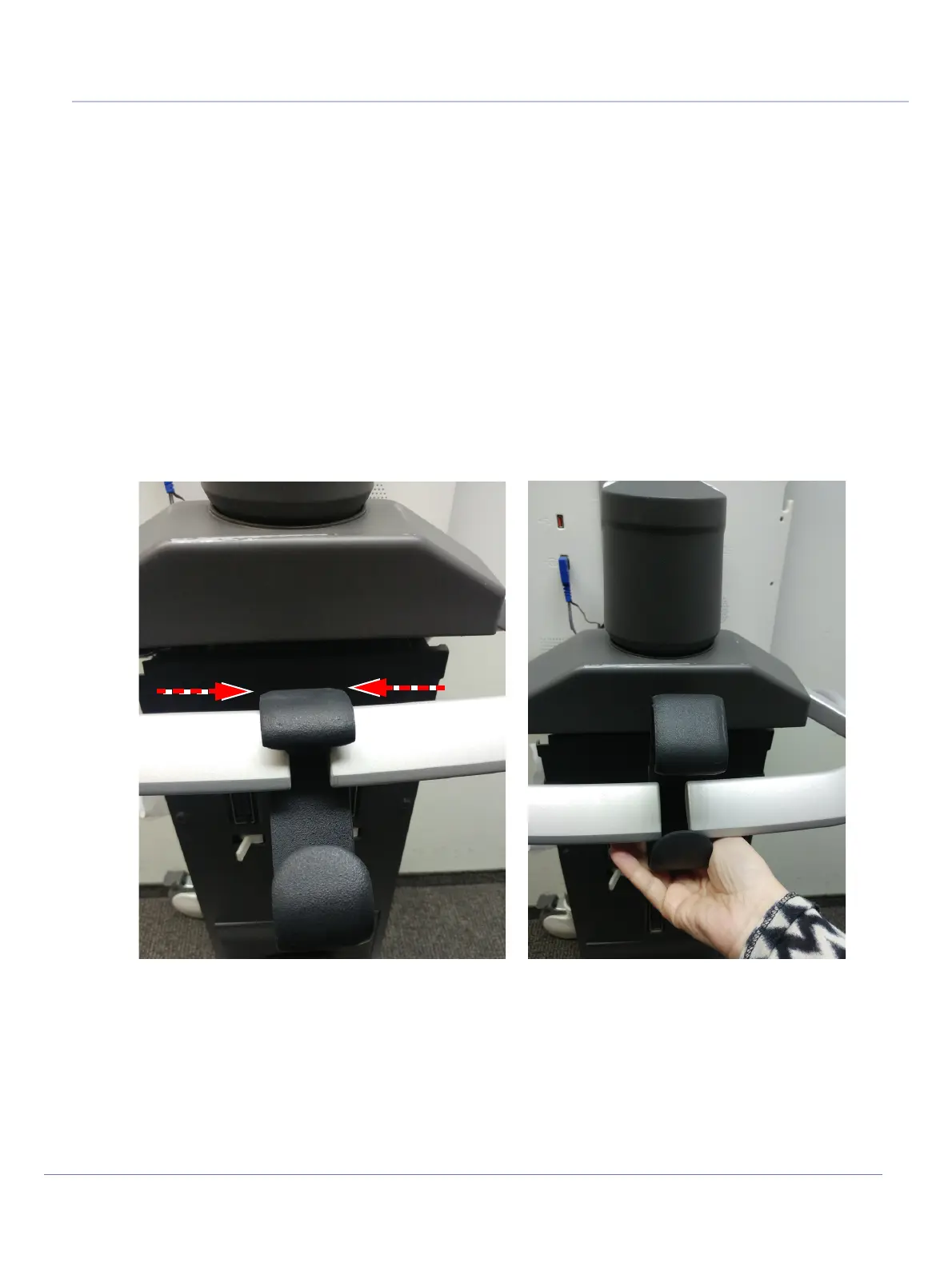

Figure 8-47 Removing the Power Cable Holder
